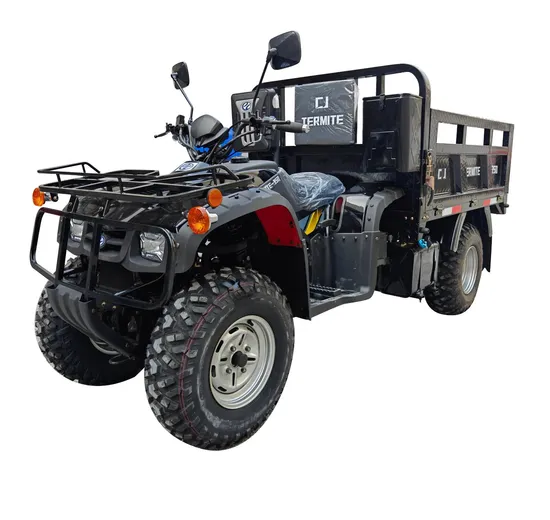

CE/ECE/350cc Water-Cooled Engine/All-Terrain Four-Wheel Drive off-Road Vehicle/Agricultural Vehicle/All-Terrain off-Road Vehicle ATV

Product Description

Detailed Photos
Product Parameters

parameter status	Specification Description
Dimension (L×W×H) mm	3230×1300×1515
Cargo size(L*W*H)mm :	1600*1200*560
Net Weight (Kg)	450
Max Load (Kg)	1200KG
Max Speed	60km/h
Ground clearance	238mm
Max Gradient	>15°
Minimum Turning Diameter(mm)	6000
Front Wheel Specifications	AT 25*8-12
Rear wheel specification	AT 25*10-12
Front track	800(mm)
Rear track	925(mm)
Front and rear wheelbase	2095mm
Engine	Single-cylinder, water-cooled, four-stroke
Displacement	350CC
Start Mode	Electric / kick
Battery	12V/28A Maintenance-free lead-acid battery
Transmission Way	shaft drive 4WD
Suspension	McPherson
Drive mode	Part-time four-wheel drive
Braking method	Front and rear drum mechanical brakes
30km/h Braking Distance / Initial Speed 30km/h	< 7.5
Rated Power / Rotary Speed	14kw / 6000r/m
Max Torque / Rotary Speed	25.5Nm/4500r/m
(L / 100km) Economic oil consumption	≤3.5
Compression Ratio	9.2:1
Container Loading Quantity(40GP)	34 units in CKD in 40GP,12 Units in CKD/20GP

After Sales Service One year, three guarantees service, spare parts provided Our Advantages 1. Experienced team: We have an experienced team with more than 10 years of export experience.
2. High-quality products: Our products undergo strict quality control and testing to ensure that they meet the highest quality standards.
3. The company adopts a combination of industry and trade, which greatly provides convenience for customers.
4. Competitive prices: We offer competitive prices and flexible payment methods to meet customers' budgets and needs.
5. Timely delivery: We are committed to delivering products on time. Company Profile
Henan Niegui Import and Export Trade Co., Ltd. is located in Luoyang city, Henan Province, which is the"Ancient Capital of China"."the Peony city in China", "the origin of Chinese Civilization &Culture" .It is near the"WORLD CULTURAL HERITAGE"--the Longmen Grottoes and the ShaolinTemple,20 minutes by car from Luoyang Airport, and 90 minutes by car from Zhengzhou Airport.
The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles, mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,
Its brand"CHANGJIANG"is very famous in China and has nearly 60 years history until now .The total investment is 600 million yuan and the building area is 90,000 square meters. With a total number of 450 people, the company has three standardized workshops, modern business office buildings, staff restaurants, and apartment buildings.
The company has two modern assembly production lines, a coating production line, an electrophoresis production line, a surface treatment line, a carriage molding production line and other large-scale complete production facilities and equipment. Robot welding technology is adopted for the frame and carriage. Possess advanced inspection and testing equipment: three-coordinate measuring instrument, leaf spring test bench, front shock absorption test bench, electrical test bench, tire comprehensive test bench, two vehicle inspection lines, ensuring the consistency of the factory products and all the factory products In line with national standards.
The company has always adhered to "quality first, customer first" for many years, established an extensive sales network, and its products are sold all over the world. The company focuses on quality and keeps promises, and ranks among the best in the same industry in the country. Continuously improve the level of enterprise management, has passed ISO9001: 2008 international quality management system certification, 3C certification, passed the Ministry of Industry and Information Technology production access assessment announcement, obtained production qualifications and followed IS09001 management standards, all products have "CCC" certificates, some products have " EEC" certificate, now exported to the European market. Products are exported to Egypt, Myanmar, Nepal, Cambodia, Russia, France, Italy, Australia, Britain, South America, Africa, Central Asia and other countries and regions.
Welcome the friend all over the world come to visit us and cooperation! Packaging & Shipping
