Insulation Resistance Tester / Surface Resistivity Meters for Ground / Ground Resistance Tester

Product Description

Product Description:

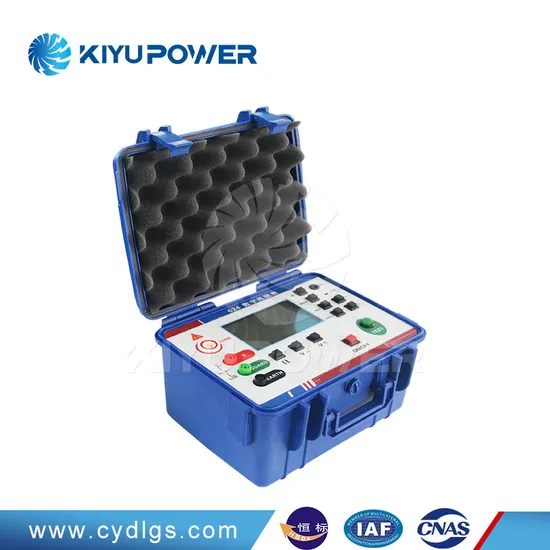

CYJY-624 Digital mega ohm meter is composed of medium and large scale integrated circuits. Large output power, high short circuit current, many output voltage level(there are four voltage levels).
Product Features:
1.Large output power, strong load capacity and anti-interference ability. Use proportion method to measure the low resistance, so the voltage drop does not affect the test accuracy.
2.Battery powered, automatically convert the measurement range.
3.Output short circuit current can be measured directly, no need to estimate on load measurement.
Product Parameters:

Using Condition	Environment Temperature	0ºC~45ºC
	Relative Humidity	≤85% RH
Output Voltage Level Measurement Range Resolution Error	Output Voltage Level	500V, 1000V, 2000V, 2500V
	Measurement Range	0~19990MΩ
	Resolution	0.01MΩ, 0.1MΩ, 1.0MΩ, 10.0MΩ
	Relative Error	0~2000MΩ≤±5%±2d
		2000MΩ~19990MΩ≤10%±2d

Company Information:
Kiyu Power is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
