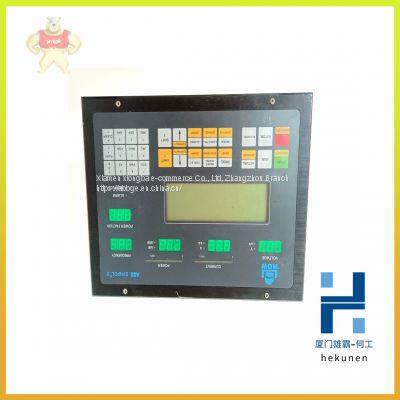

CMA120 3DDE300400 ABB As panel controller panel complete machine

Product Details

Product Description

Product Description
CMA120 3DDE300400 ABB As panel controller panel complete machine
CMA120 3DDE300400 ABB As panel controller panel complete machine
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
When designing transport tubing, the affect that corrosion has on tubing must be
considered. For hydrocarbon service, stainless steel transport tubing, type 316SS,
is recommended.
For selection of transport tubing for different types of service, the user should refer
to reference information applicable to material applications for corrosive
environments.
1.7.10 Tube Preparation
In the course of installing (cutting and fitting) the tubing at an installation, it is
important to dress the ends of any cut tubing and to insure that in the cutting and
deburring process that no particles are allowed to remain in the tubing.
2101510-002 – rev. AD Page 1–23
1.8 Calculating Lag Time
The following calculations assume that all pressure drops occur across the valves
HV-1, HV-2 and HV-6 and that the rotameters RM-1, RM-2 and RM-3 are
measuring flow at atmospheric pressure (see Figure 1—18).
Figure 1—18 is for reference purposes only but, it is “typical” of a
sample conditioning module with liquid separator and liquid
shutoff. It is included for reference only. Refer to the
documentation provided with the unit.
