Customisable 485c Mini Portable Air Suspension Compressor

Product Description

Customisable 485C Mini Portable Air Suspension Compressor Product Description

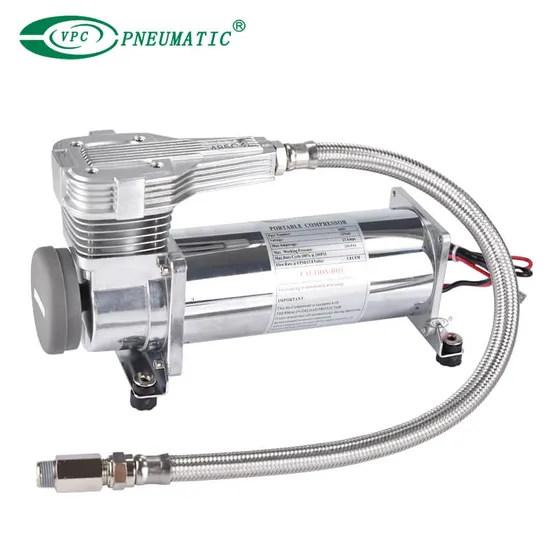

The 485C air compressor can run continuously at 200 PSI, suitable for high-pressure and long-term use of air suspension systems. The VPC customized 485C uses high-quality stainless steel body and braided hose, etc., which is resistant to oil and corrosion and has a longer life. Since the air compressor is customized with a special appearance mold, small batch laser customization of the logo can be achieved.
Product Feature 1. High performance: can run continuously at 200 PSI, suitable for high-pressure and long-time use of air suspension systems.
2. Fast inflation: It can quickly inflate the air suspension system to ensure the vehicle suspension height and driving smoothness.
3. Durable material: High-quality stainless steel braided hose, etc., to improve the service life.
4. Thermal protection: Equipped with automatic thermal overload protection to ensure safety and reliability.
5. Low noise: Designed with noise control in mind to keep the noise level low during operation.
6. Compact design: easy to be installed on all kinds of car models, taking up little space.
7. Easy Maintenance: Simple routine maintenance ensures long-term efficient operation.

Product Specification

Product Name	485C Portable Air Compressor
Voltage	DC 12V
Combined Max. Amp Draw	23A
Max Working Pressure	200PSI(1.37Mpa)
Ingress Protection Rating	IP67
Max Duty Cycle	100% @ 200 PSI
Flow Rate	1.8CFM@0PSI
Metal Hose	Ø14mm*0.5m
Check Valve Threads	1/4"G,1/4''NPT,3/8''G,3/8''NPT
Main Dimension(LxWxH)	27cm x 10.5cm x 16.5mm (10.63″L x 4.1″W x 6.44″H)
Net Weight(Kgs)	5.5kgs

Please Note
1. Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
2. Always operate the compressor at or below the MAXIMUM PRESSURE RATING of the air compressor. Always observe the MAXIMUM DUTY CYCLE of the air compressor. Operation exceeding maximum pressure ratings and/or duty cycle will result in damage to the air compressor.

PERFORMANCE DATA
PSI	CFM	A	BAR	LPM	A
0	2.24	12	0	70	12
10	1.84	14	1	51	15
20	1.75	16	2	47	16
30	1.67	17	3	44	18
40	1.61	18	4	41	20
50	1.54	19	5	38	21
60	1.47	20	6	35	21
70	1.42	21	7	32	22
80	1.36	21	8	29	22
90	1.3	22	9	27	22
100	1.23	22	10	25	23
110	1.17	22	11	22	22
120	1.11	22	12	21	21
130	1.06	22	13	21	21
140	1.01	23	13.8	21	21
150	0.97	22
160	0.92	22
170	0.88	22
180	0.84	21
190	0.77	21
200	0.73	21

Note: Supply Voltage: 13.8 Volts

FILL RATES
2.5 GALLON TANK	FILL RATE
0 to 200 PSI	4 min. 50 sec. (± 10 sec.)
165 to 200 PSI	1 min. 15 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 200 PSI	9 min. 45 sec. (± 15 sec.)
165 to 200 PSI	2 min. 25 sec. (± 05 sec.)

Note: Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
Packaging & Shipping
Packaging type:

VPC Box

White Box

Color Box

VPC Carton

Pallet

Delivery time:

Conventional Products	Customized Products	Specially Customized Products
on the day of payment	10 workdays	25 workdays.

Payment term:

PayPal	TT	Western Union	DP	LC	Money Gram	Online Bank	Credit Order	Pay Later	DA
YES	YES	YES	NO	NO	YES	YES	YES	YES	YES

Transportation:
Express (DHL, UPS, TNT, JCEX, FEDEX) is available.
Sea and Air transports are available.
The most suitable transport way will be chosen for you.
Product Category
About Us
Product FAQ
Q1: What is your quality assurance?
A: We will inspect one by one before delivery. If the product is damaged in transit or has quality problems, you can choose to refund or resend the product, and the freight will be borne by us.
Q2: What are your terms of payment?
A: TT, we'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Bank transfer, Trade Assurance order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4: What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5: How about the warranty?
A: 1 year warranty.
