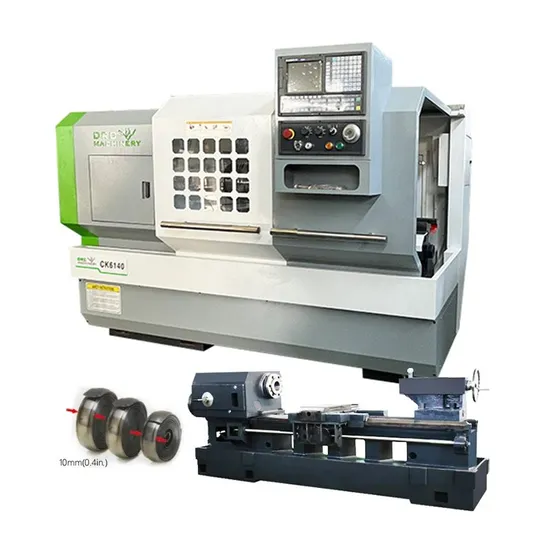

Cheap CNC Lathe Machine Small CNC Lathe Machine Ck6140 China CNC Lathe Machine Price
Basic Info.
Model NO.
Ck6140 Cnc Lathe
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Lathe
China CNC Lathe Machine Price
CNC Lathe
China CNC Lathe
CNC Lathe Machine
CNC Lathe Machine Price
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 2200X1160X1620
Trademark
DRC
Origin
China
Production Capacity
500
Product Description
Cheap Cnc Lathe Machine Small Cnc Lathe Machine Ck6140 China Cnc Lathe Machine Price| Model | CK 6140 (GSK980TC3 system) |
| Processing ability | Unit ( mm ) |
| Max. swing over bed | Φ400 |
| Max. swing over slide | Ф240 |
| Max. Processing length | 750mm |
| Travel | |
| X/Z axis travel | 240/750mm |
| X/Z axis minimum displacement unit | 0.001 |
| Spindle | |
| Spindle bore diameter | Ф58 |
| Pull tube hole diameter | Φ55 |
| Spindle inner hole taper | 40° |
| Spindle series | stepless |
| Max. spindle speed | 150-2000 rpm |
| Workpiece clamping mode | Manual chuck K11-200 |
| Main motor power | 5.5 kW |
| Feed turret | |
| X/Z axis torque | 5/7.5 N.m |
| X/Z axis rapid speed | 6/8 m/min |
| Turret type | Electicity |
| Tool shank size | 25×25 |
| Turret repeatability | ≤0.004 |
| Tailstock | |
| Tailstock diameter | Φ65 |
| Tailstock travel | 150 |
| Tailstock center taper | Morse 4# |
| Others | |
| Machine net weight | 1800kg |
| Machine dimension(L×W×H) | 2500×1500×1700 |
| Power supply(power/ electric current) | 11kW/20A |
| Standard configuration | |
| Chuck | Ф200 manual chuck |
| Tailstock | Manual tailstock |
| X axis ball screw | Domestic(Qishan)FD3210-889-1035 |
| Z axis ball screw | Domestic(Qishan)FD2506-407-530 |
| Electricity turret | 4 position |
| X,Z axis screw bearing | Domestic(Derun) |
| Spindle bearing | Domestic P5 |
| Machine casting | Highquality resin sand casting |
| Spindle assembly | Assembly spindle |
| Oil paint | Can be customized color |
| Lubrication | Domestic |
