Cheap Price RFID Card Door Security Access Control System with Color Screen

Product Description

RFID Card and Password Time Attendance & Access control System.
Model Name: SC405
Brand Name: GRANDING
Product Description:

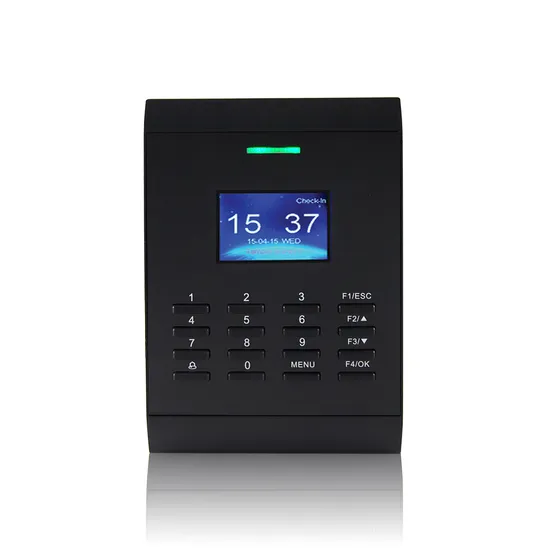

SC405 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in residential housing, offices and any other public facilities.
Features:
1. 2.0-inch color display with graphical Ul for easy operation2. Standard access control features such as Time zone,Holiday,A&C Group,Unlock combination etc.3. Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch4. TCP/IP or RS485 communication for various networking environments5. Supports USB flash drive for offline data management 6. Support EM 125 KHz or IC 13.56MHz proximity card or compatible card7. Up to 24 user-defined schedules that can be activated on a daily bell alert

Specifications:

Model Name:	SC405/ID
Display:	LCD Display: 2"TFT color screen
Speaker:	Voice Prompt (language can be selected)
Capacity:	Card capacity: 30,000 Log capacity: 80,000
Verification:	Verification speed(1:1): ≤0.5s Identification speed(1:N): ≤20ms
Communication:	TCP/IP, USB Host, RS485, Wiegand in/out
Attendance status:	Check in/out,Over Time in/out
Power Supply:	110/220V AC-12V /3A (optional)
Access Control:	50 times zones, 5 groups, 10 open door combination, supports multi-users enter, TTL for connecting to lock, door sensor, exitbutton, alarm
Access Mode:	Card only, PIN only, Card+PIN
Customize Function:	13.56MHZ MF card reader,ADMS
Environment:	Operation temperature: 0ºC-45ºC,Operation humidity: 20% - 80%
Language:	Multi Language, English, French, Spanish, Arabic, etc.
Function Support:	Work code, SMS, 9 PIN user ID, Auto status
Packing data:	Machine size: 14.3(L)*9.6(W)*4.2(H)cmUnit packing:25*15*9cmCarton packing:53*33*45cmReal weight:0.75KGVolume Weight: 1.5KG

Connection Diagram:
Detailed Imageds:
Free Standalone Time Attendance Software & SDK:
Also Charged the Web based Software: UTimeMaster Software, it support many language: Chinese, English, Spanish, Portuguese, French, German, Arabic, Russian, Hebrew, Indonesian, Thai, etc. It Suppots time attendance, access control, Payroll function and employee Temperature management. it can be with Prevention module can show body Temperature and Mask and have Employee Shift, Schedule, Leave Time Management & Payroll function. it can have the Mobile APP function.
Payment & shipment: Payment Terms: Paypal or West Union for sample order; T/T for regular order; L/C for large order.
Shipment Way: International Express TNT, UPS, Fedex, DHL, Aramex ; International Air; or by Sea shipment.
FAQ : 1. Q: Do you have any MOQ limit?A: For your convenience, we can accept 1 pcs. But we offer better price for big order.2. Q: What if the products have problems?A: We offer 1 year warranty except for the man-made damage. And we can offer any technical support for operation problem.3. Q: Dose the device's language can be in other language?A: Yes, of course. Multi-language can be customized. Our device support English, Spanish, Portuguese, Russian, Arabic, French, German, etc.4. Q: What about the Payment?A: You can pay for the order via: T/T, Western Union, Paypal, Credit Card payment, L/C, DP5. Q: How do you ship the goods?A: Small order: Express like DHL, UPS, TNT, FedexBig order: By Sea or By airlines.6. Q:How can I get a sample to check your quality?A: You can require for samples to check our quality. You should pay for the sample and freight cost, if order more than 500 pcs, we return the sample cost to you.
7. Q: What about the lead time for mass production?A: small order: 1 week after paymentBig order: 2-3 weeks.8. Q:Where can I get the price?A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us, in your email so that we'll regard your inquiry priority. Any furthur, please kindly feel free to contacyt us.
