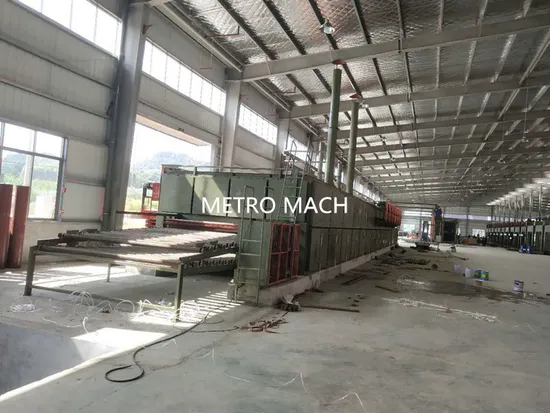

Plywood Making Machine Core Veneer Dryer

Product Description

Plywood Making Machine Core Veneer Dryer
MAIN FEATURES:
This series of roller dryer is one of the main machines in plywood production line. It is very suitable for wet clipping processing and drying thick veneer.
Advantage:New technology and advanced PLC controlling system have been used for effective and quality drying veneers with lower energy consumption.
The BG1333 roller dryer machine is 13 sections as a standard, 2 meters as a standard for one heating section, one cooling section, one conveying system, one input roller table, and one output roller table. Customers can use the machine from 8 sections to 18 sections that it is up to your needs.
TECHNICAL SPECIFICATIONS:

Machine model	BG1333
Density	550Kg/m3
Veneer thickness range	1.5-3.6mm
Initial moisture content	80%
Final moisture content	10%
Load ratio	80% to 85%
Woking width	2800mm
Working decks	3decks
Length of heating section	2000mm x 8 sections
Length of cooling section	2000mm x 1 section
Transmission speed	0-15m per min
Drying capacity	3-4m3 per hour
Steam consumption	2100kg per hour
Installation motor power	117.5kw
Transmission motor power	7.5Kw x 3sets
Ventilation motor power	11Kw x 8sets
Cooling motor power	7kw
Machine oveall dimension	23000x5200x4010mm
Machine net weight	68000Kgs

DRYING SYSTEM
Adopt scientific Hot blast stove and Hot air room in whole drying structure, use centrifugal blower blow the hot air into upper and lower air steel pipe, the hot air come out through wind outlet of upper and lower air pipes to double veneer surface, make veneer heat uniformity to realize drying veneer function.
TRANSMISSION SYSTEM
Veneer feed form inlet entre go into machine, use chain drive upper and lower 2 row rollers rolling, the upper roller dead load press veneer for feeding, veneer go through upper and lower rollers and wind outlet, meanwhile, get drying and smooth, finally get veneer drying, smooth, polishing, traceless function.
CONTROL SYSTEM
Adopt variable frequency speed control, can adjust feed speed according your veneer thickness and moisture content, to get perfect drying effect.

HEAT SYSTEM
Hot blast stove type heat system, can use log skin and waste veneer as fuel.
FEED INLET WIDTH:
1500mm Width - Drying 2pcs 670mm width veneer once
2250mm Width - Drying 3pcs 670mm width veneer once
PACKING&SHIPPING:
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
OUR SERVICES:
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
