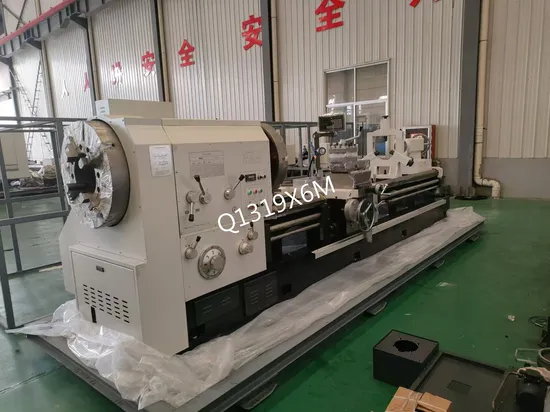

Q1319X6m Common Pipe Thread Lathe Conventional Lathe with Two Chuck
| US$80,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Q1319X6M
Type
Horizontal Lathe
Processing Accessory
Manual
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Condition
New
Center Distance
6m
Use
Oilfield
Mainly Aim
Machining Thread
Machining Material
Metal and Other
Transport Package
Pallet
Specification
6m
Origin
Dezhou
HS Code
8458110090
Production Capacity
3000
Product Description
Q1319CNC pipe thread latheProduct Parameters
| SPECIFICATION | NT | Q1313 | Q1319C | Q1322C | Q1325C | Q1327C | ||
Capacity | Swing over bed | mm | 630/800 | 630/800 | 630/800 | 800 | 800 | |
| Swing over cross slide | mm | 340/520 | 340/520 | 340/520 | 480 | 480 | ||
| Distance between centers | mm | 1500/3000/6000 more | 1500/3000/6000 more | 1500/3000/6000 more | 1500/3000/6000 more | 1500/3000/6000more | ||
| Pipe threading range | mm | 30-126 | 50-193 | 50-220 | 50-250 | 50-270 | ||
Spindle | Guideway width | mm | 550 | 550 | 550 | 600 | 600 | |
| Max.load capacity | 3 | 3 | 3 | 4 | 4 | |||
| Spindle bore | mm | 130 | 206 | 225 | 255 | 280 | ||
| Spindle speed steps | FWD.18step/REV.9step | NF.4 steps | NF.4 steps | NF.4 steps | ||||
| Spindle speed range | rpm | 30-800 | 20-600 | 20-420 | ||||
| Chuck | mm | φ400 3-jaw manua | φ520 4-jaw manual | φ630 4jaw manual | φ680 4jaw manual | |||
| turret | turret/tool post | Manual 4 position | Manual 4 position | Manual 4 position | ||||
| Tool shank size | mm | 30x30 | 32x 32 | 32x32 | 32x32 | 32x32 | ||
| feed | X axis travel | mm | 320/420 | 320/420 | 320/420 | 420 | 420 | |
| Z axis travel | mm | 1350/2850- | 1350/2850- | 1350/2850- | 1250/2750 | 1250/2750 | ||
| X axis feed grade/range | mm | 64/0.1-1.52 | 22/0.02-0.45 | 22/0.02-0.45 | 22/0.02-0.45 | 22/0.02-0.45 | ||
| Z axis feed grade/range | mm/r | 64/1.6-24.3 | 26/0.07-1.33 | 26/0.07-1.33 | 26/0.07-1.33 | 26/0.07-1.33 | ||
| X axis rapid traverse | mmi | 2300 | 2300 | 2300 | 2300 | 2300 | ||
| Z axis rapid traverse | mma | 4000 | 4000 | 4000 | 4000 | 4000 | ||
| Metric thread | mm | 50/1-24 | 1-15 | 1-15 | 1-15 | 1-15 | ||
| Inch thread | T.PI | 26/14-1 | 14-1 | 14-1 | 14-1 | 4-1 | ||
| tailstock quill diameter | mm | φ100 | 100 | 100 | φ120 | 120 | ||
Tailstock | Tailstock taper | MT5 | WT5 | MT5 | MT6 | MT6 | ||
| tailstock quill travel | mm | 250 | 50 | 250 | 250 | 250 | ||
| motor | Main spindle motor | kW | 11 | 11 | 11 | 15 | 15 | |
| Rapid transversal motor | kW | 0.3 | 0.3 | 0.3 | 1.1 | 1.1 | ||
| Cootlant pump motor | kW | 0.125 | 0.125 | 0.125 | 0.125 | .125 | ||
| Dimension | Width x Height | mm | 1500x1500 | 1550x1540 | 1650x1550 | 1700x1600 | 1700x1600 | |
| Length | mm | 3700/5200 | 3700/5200 | 3700/5200 | 4100/5600 | 4100/5600 | ||
| Weight | Net weight | 4.0/5.2 | 4.3/5.5 | 4.5/5.7 | 8.0/9.0 | 8.0/9.0 | ||
| Please note:machine bed length can customize according to real work demand. | ||||||||
| SPECIFICATION | UNIT | Q1327 | Q1332 | Q1338 | Q1343 | Q1350 | |
| Capacity | Swing over bed | mm | 1000 | 1000 | 1000 | 1000 | 1200 |
| Swing over cross slide | mm | 610 | 610 | 610 | 610 | 710 | |
| distance between centers | mm | 1500/3000/6000 more | 1500/3000/6000 more | 1500/3000/6000 more | 1500/3000/6000 more | 1500/3000/6000more | |
| Pipe threading range | mm | 130-270 | 190-320 | 190-380 | 270-430 | 330-510 | |
Spindle | Guideway width | mm | 755 | 755 | 755 | 755 | 765 |
| Max.load capacity | 6 | 6 | 6 | 6 | 6 | ||
| Spindle bore | mm | 280 | 330 | 390 | 440 | 520 | |
| Spindle speed steps | FWD.12 steps | FWD . 9step | FWD.9 steps | FWD.9 steps | FWD.9 steps | ||
| Spindle speed range | pm | 16-380 | 7.5-280 | 6-205 | 4.9-180 | 4.9-180 | |
| Chuck | mm | φ800manual four jaw | φ780 electrical four jaw | 850 electrical four jaw | φ1000 electrical four jaw | ||
| Turret | turret/tool post | Manual 4 station | |||||
| tool shank size | mm | 45x45 | 45x45 | 45x45 | 45x45 | 45x45 | |
feed | X axis travel | mm | 520 | 520 | 520 | 520 | 520 |
| Z axis travel | mm | 1350/2850-5850 more | 1350/2850-5850 more | 1350/2850-5850 more | 1350/2850-5850 more | 1350/2850-5850 more | |
| X axis feed grade/range | 40/0.05-1.5 | 32/0.05-0.75 | 32/0.05-0.75 | 32/0.05-0.75 | 2/0.05-0.75 | ||
| Z axis feed grade/range | mm | 40/0.1-3 | 32/0.1-1.5 | 32/0.1-1.5 | 32/0.1-1.5 | 32/0.1-1.5 | |
| X axis rapid traverse | Mm/min | 1870 | 1870 | 1870 | 187 | 187 | |
| Z axis rapid traverse | Mm/min | 3740 | 3740 | 3740 | 3740 | 3740 | |
| Metric thread | mm | 30/1-3 | 23/1-15 | 23/1-15 | 23/1-15 | 23/1-15 | |
| Inch thread | T.P.I | 27/28-1 | 22/28-2 | 22/28-2 | 2/28-2 | 2/28-2 | |
| tailstock quill diameter | mm | φ160 | φ160 | φ160 | φ160 | φ160 | |
Tailstock | Tailstock taper | MT6 | MT6 | MT6 | MT6 | MT6 | |
| tailstock quill travel | mm | 300 | 300 | 300 | 300 | 300 | |
Motor | Main spindle motor | kW | 22 | 22 | 22 | 22 | 22 |
| Rapid transversal motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Coolant pump motor | kW | 0.126 | 0.126 | 0.125 | 0.125 | 0.125 | |
Dimension | Width x Height | mm | 2100x1600 | 2100x1650 | 2100×1700 | 2100×1700 | 2100×1850 |
| length | mm | 4800/6300- | 4900/6400- | 4900/6400- | 000/6500- | 5000/6500- | |
| Weight | Net weight | t | 10.0/11.5- | 11.5/13.0- | 2.8/14- | 13.0/14.5- | 5.0/16.5- |
pay term
Shipped per: BY SHIP
Payment Terms: 30% down payment T/T before order, and 70% TT before exfactory.
Price Terms: FOB Qingdao, china
Delivery Time:Eighty days since received down payment within a week at PI date
Warrenty period of main machines: One years, free part within one year if normal use.
Detailed Photos
