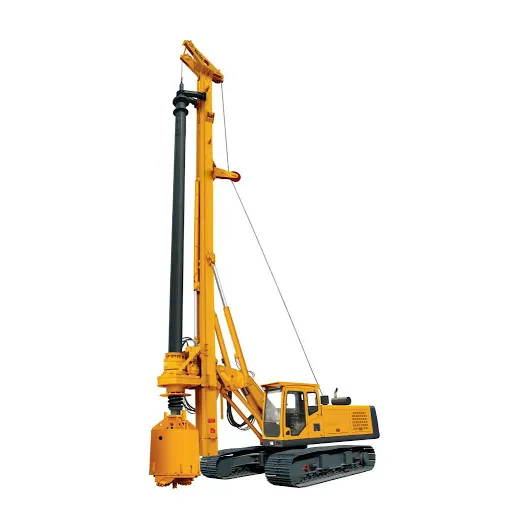

Construction Drilling Machine Rotary Drilling Rig Xr150d
Basic Info.
Model NO.
XR150D
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
240m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.6mm
Certification
CE
Condition
New
Color
Red
Drilling Diameter
4600mm
Drilling Depth
100/126/150m
Working Weight
320t
Pump Displacement
170m3/H)
Transport Package
Nude Package
Specification
11300*2500*3990
Trademark
Evangel
Origin
China
Production Capacity
100 Sets/Month
Product Description
XR Series Rotary Drilling Rig XR130E DESCRIPTION 1. It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience. 2. It adopts the electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard. 3. With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation. 4. Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate. 5. The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.| Parameter | | Unit | XR130E |
| Engine | Model | | QSB7-C227 |
| Rated Power | kW | 169 | |
| Rotary Drive | Max. output torque | kN·m | 130 |
| Rotary speed | r/min | 8~35 | |
| Max. Drilling Diameter | mm | 2500 | |
| Max. Drilling Depth | m | 50 | |
| Main Winch | Max.Pulling force | kN | 140 |
| Max.line speed | m/min | 75 | |
| Auxiliary Winch | Max.Pulling force | kN | 50 |
| Max.line speed | m/min | 70 | |
| Mast Rake | Side/forwards/backwards | 3° | |
| Undercarrige | Max. traveling speed | km/h | 2.7 |
| Max.grade ability | % | 40 | |
| Min. Clearance | mm | 345 | |
| Track shoe width | mm | 600 | |
| Distance between tracks | mm | 2500~3600 | |
| Hydraulic System | Working pressure | Mpa | 35 |
| Overall Drilling Weight | t | 45 | |
| Dimension | Working condition | mm | 7546×3600×17724 |
| Transportation condition | mm | 14097×2500×3500 | |
