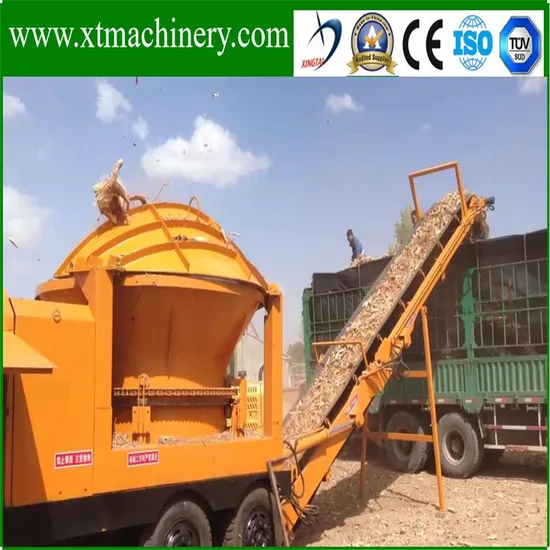

Wear Resistance Steel Made, Longer Lifetime Biomass Tree Stump Tree Root Grinder

Wear Resistance Steel Made, Longer Lifetime Biomass Tree Stump Tree Root Grinder

US$19,500.00-65,800.00 1 Set (MOQ)

Basic Info.

Model NO.
XT-3600
Automatic Grade
Full-Automatic
Warranty
1 Year
Rotor Diameter
750mm
Blade Numbers
6PCS
Running Speed
1405r/Min
Finished Chip Size
20mm-50mm or Customized
Feeding Conveyor
10m
Discharge Conveyor
10m
Top Feed-Inlet Size
3600mm
Bottom Feed-Inlet Size
2300mm
Maximim Stump Diameter
2100mm
Transport Package
by Sea
Specification
8900mmx2800mmx2600mm
Trademark
XT Machinery
Origin
China
HS Code
84659600
Production Capacity
30 Sets/Month

Product Description

Wood chipper machine brief introduciton
Stump grinder is mainly used for producing wood chips from tree roots, stump, which is the main raw material of biomass factories and also curhsing baled straw.
Characteristics
Tree stump shredder is a special equipment for cutting tree stumps in biomass power plant.It is widely used in the material preparation section of biological power plant.The main cutting material of this machine is wooden block.The machine has reasonable structure, simple operation, high production capacity, safe and reliable and convenient maintenance.Is a relatively advanced domestic stump crushing equipment.The company can also according to customer requirements to improve the product and design.
Application
Scope: wood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board.
Non-wood raw material: sugarcane, reed, straw, etc.
Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory,wood pellet manufature
Detailed Models For Wood Stump: Specially cut the wood stump into small mulch or chips with size 20mm-50mm
Model XT-3000 XT-3300 XT-3600
Rotor diameter 650mm 750mm 750mm
Blade numbers 2-6 pieces 2-6 pieces 2-6 pieces
Running speed 960r/min 960r/min 1405r/min
Mesh screen size Φ 50 or customerized Φ 50 or customerized Φ 50 or customerized
Main power 160KW 220KW 250KW
Feeder power 5.5KW 7.5KW 7.5KW
Discharge power 5.5KW 7.5KW 7.5KW
Oiling Power 3KW 3KW 3KW
Top feed-inlet size 3000mm 3300mm 3600mm
Bottom feed-inlet-size 1600mm 2000mm 2300mm
Maximum stump diameter available 1200mm 1600mm 2100mm
Output capacity 10-15Ton/Hour 15-20Ton/Hour 20-25Ton/Hour
Machine weight 8.9Tons 18.7Tons 24.8Tons
