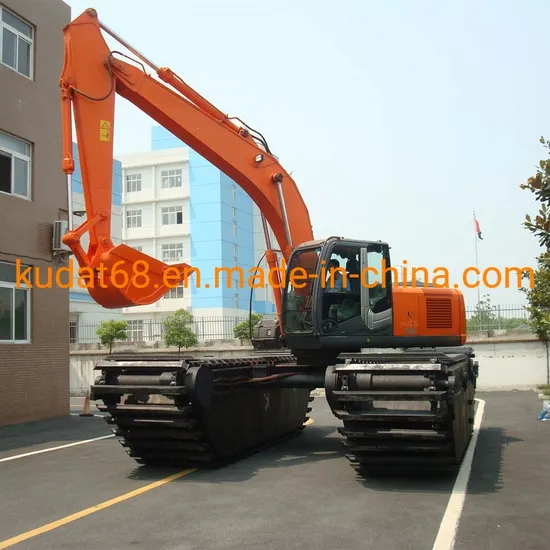

Hydraulic Amphibious Excavator Working in The Underwater About 1.5-2.5m Depth

Product Description

Amphibious Excavators

Model	KD210LC
Operating weight	33000kg
Bucket capacity	0.5 m3
No .of Chains	3
Performance
Ground pressure	0.14 kg/cm2
Slew speed	12.5rpm
Max.travel speed high .low	3.3/2.3km/h
Grade ability	25°
Engine
Model	ISUZUAA-6BG1TRP
Type	Turbe-charged with inter-cooled
Power	110kw/2100rpm
Displacement	6.494L
Kawasaki Hydraulic system
Pump type	Variable displacement axial piston pump
Working pressure	32.9Mpa
Slewing motor	Fixed displacement piston motor
Travel motor	Variable displacement piston motor
Tank capacity
Fuel tank capacity	310L
Hydraulic tank capacity	200L

Item	Standard(mm)
Model	KD210LC
A Length of pontoon	9500
B Overall length	12890
C Cab height	3820
D Counterweight clearance	1900
E Boom transport height	3748
F Min .ground clearance	1175
G Width of pontoon	1800
H Overall width	5560
I Upper structure width	2680
J Height of pontoon	1700

Item	Standard(mm)
Model	KD210LC
A Max .digging reach	12500
B Max .digging depth	7847
C Max .cutting height	13100
D Max .dumping height	10800
E Min .front slew radius	3960

Optional Attachments:

1. Options for Bucket :Dredging Bucket, Strengthen Bucket, Customized Bucket 2. Side Pontoons 3. Deep Water Spuds 4. Option for 10M standard arm and 12.5M long arm

After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.

Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.

Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.

Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
