2 Years Service CNC Two Heads Aluminium Profile Cutter Machine for Window Dooo

Product Description

Product Description

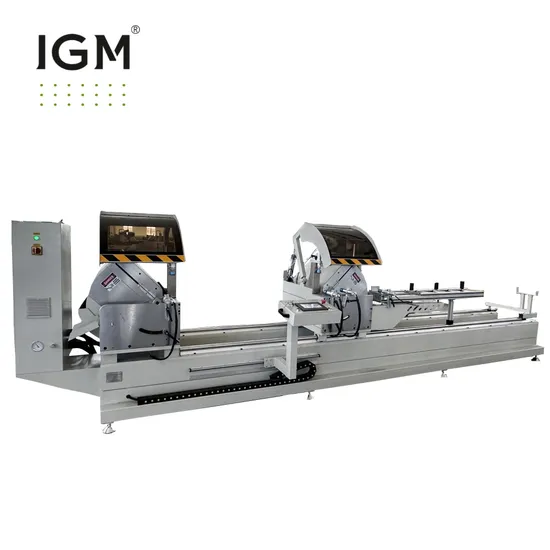

2 years Service CNC Two Heads Aluminium Profile Cutter Machine
Model:LJZ2C-CNC-500*4200
Function: Cutting 45 degree/90 degree angle
Main Features of Aluminium Profile Cutter Machine .
1. Mainly used to cut alumium profiles to make aluminum door and window,and also cut curtain wall profiles ,industrial aluminum profile.
2. The control system is Delta (or SIEMENS), including PLC, touch screen, servo motor, servo drive, etc.
3. Adopt Push-button operation screen, with USB interface.Can realize the data interchange via by input external memorizer.
4. The high-precision spindle is used to drive the diamond saw blade to rotate, which can cut 45 degrees and 90 degrees, and the angle is automatically indexed. It runs smoothly and reliably with high precision.
5. Auto opening safe shield with rubber seal make the user safe.
6. Automatic feeding can be performed when cut 90 degrees angle.
7. It has a phase sequence protection device to better protect the machine from damage.
Technical Parameters of Aluminium Profile Cutter Machine.

Model	LJZ2C-CNC-500*4200
Working Air Pressure	0.5 -0.8 Mpa
Power Supply	220V /380V / 415V 50 /60Hz
Cutting Height	200 - 300mm
Cutting Width	135 mm
Cutting Length	4200 mm
Cutting Angles	45° / 90°
Diameter of Blade	∅500 mm
Input Power	3.0kw*2
Rotary Speed	2800 r/min
Overall Dimension	5500*1300*1600 mm
Gross Weight	1800 KGS
Brand	IGM
Operation Manual	√
Operation Video	√
Color Customization	√
MOQ	1 SET

Detailed Photos

Imported linear square rails and racks:
Smooth operation and higher precision
control system is Delta (or SIEMENS),
The user interface can be translated into any language
Cutting from back to front,
angle 45/90 degrees, maximum width 135 mm.
Spindle motor
Servo Motor, drives the saw blade to rotate, runs smoothly and with high precision
Distribution box
Well-known low-voltage electrical appliances, PLC, motor drive
Pneumatic components and electrical components adopt world-renowned brands, which are stable and safe.
Adjustable coolant spray extends the life of the saw blade and improves cutting results.
Cutting Effect of Aluminum Profile Cutting Machine
no burrs, and no gaps in splicing.
Auto opening safe shield with rubber seal make the user safe
Packaging & Shipping
LCL: Aluminium profile cutter machine is packed in fumigation-free plywood, the pallet is thickened and raised, and the machine base is fixed with steel wire.
FCL: Generally, the outer packaging is plastic film, and the machine is fixed in a 20/40-foot container with steel wire or special packaging tape; the outer packaging can also be selected as a fumigation-free wooden box according to requirements. Extra-high-size machines require open-top cabinets.
We have many years of export and loading experience. While ensuring the safety of the machines, we rationally plan and utilize container space to save transportation costs for our customers.
