Ceramic Catalytic Converter Substrate Used in Cars

Ceramic Catalytic Converter Substrate Used in Cars

US$12.50
10-999 piece (depend on size)
US$12.00
1,000-4,999 piece (depend on size)
US$11.50
5,000+ piece (depend on size)

Basic Info.

Model NO.
HCS
Discharge Standard
Euro IV
Certification
ISO9001, TS16949
Noise Source
The Noise of Engine
The Noise of Engine
Mechanical Noise
Automobile Chassis Noise
The Brake Noise
Component
Catalytic Converter
Main Market
Europe
Material
Cordierite
Common Specification
Diameter<120mm/Diameter<200mm,etc
Transport Package
Wooden Box and Pallet/Packed as Customers′ Need
Trademark
DXY
Origin
China
HS Code
690919000
Production Capacity
100, 000pieces/Month

Product Description

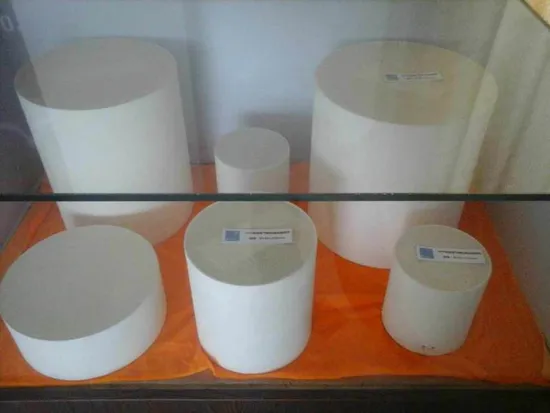

Honeycomb Ceramic Catalyst substrate used in cars:
used as catalystic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated by catalyst; at the same time, we improve the specific surface areas and cut down the heat capacity to increase the atalytic function. When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components.
Diesel particulate filter bases on honeycomb ceramic substrate, whose materials are cordierite or carborundum. It could trap the particulate matter from disel exhaust emissions, so they are applied on cars, buses, trucks and so on.
Advantages:
>High specific surface area: ensure exhaust gas could contact with catalyst enough.
>Stable water absorption: guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it is no waste for too thick coating.
>Warm-up characters: after starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
>Low exhaust resistance: ask exhaust resistance of substrate to engine low, so that it will not affect the performance of engine.
>High intensity: substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
>Perfect assembly: substrates are parts of exhaust; perfect appearance and exact dimension could ensure assembly perfect.

Item Index



Heat Property
Coefficient of heat expansion (40-800celsius degree) (x10-6/celsius degree) <1.0
Heat Property Specific heat [J/(g.k)] 0.84
Heat Property Softening temperature (celsius degree) 1400
Heat Property Melting point (celsius degree) 1455
Heat Property The highest working temperature (celsius degree) 1350
Physical Property Fine mesh bulk (cm3/g) 0.2
Physical Property Apparent porosity (%) 36
Physical Property Average fine aperture (um) 4
Mechanical Property Compress breaking strength (Mpa) Aaxes>8.3 Baxes>1.1 Caxes>0.1
Thermal Shock Resistance Aire cooled temperature difference (celsius degree) >650
