Automatic Color Printing Maxi Roll Paper Rewinding Machine Production Line

Product Description

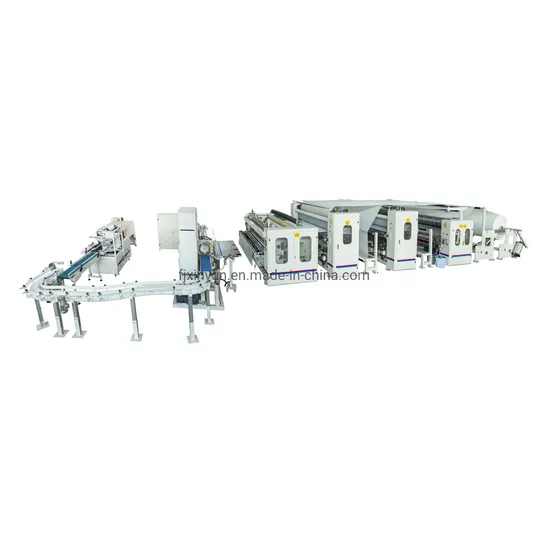

Product Overview XY-TQ-B-500 Automatic color printing maxi roll paper rewinding machine production line This production line consists of Automatic Toilet Paper Maxi Roll Rewinding Machine, Maxi Roll Cutting Machine and Automatic Maxi Roll Heat Shrink Machine. It converts the jumbo roll into the finished rolls. The whole line work smoothly and run stable, saving the labor cost and reducing the labor strength, it's best choice for the producing hygienic paper products. VIDEO LINK: https://youtu.be/DDVQ18XcEzE
Production specifications
XY-TQ-B Wall Type Automatic Toilet Paper Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted
independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate. VIDEO LINK:https://youtu.be/gHT1hEBTe2w

Machine Model	XY-TQ-B
Jumbo Roll Max Width	2800mm (Other size can be specified)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter	3inches(76.2mm) (Other size can be specified)
Perforation Distance	4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter	Φ90~φ280mm
Finished Product Core Diameter	φ38~φ76mm
Production Speed	200~230m/min
Program Controller	PLC( INVT )
Unwind Stands	2 Stands(Need to be specified)
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Main Power	14KW 380V 50HZ
Dimension	7000*4000*1900(L*W*H)
Weight	About 7T
Edge-Line Embossing	Steel to steel (Pneumatic Control)
Full Embossment	Steel to rubber.

XY-AI-500 Automatic maxi roll toilet paper cutting machine
The equipment is the latest research and development which is the extension of the company with the current market situation.Using PLC program control, big screen true color human-computer interface. The precise servo control feed length,electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state. VIDEO LINK: https://youtu.be/4jasCm1xL7g

Machine Model	XY-AI-500
Cutting speed	15-30cuts/minute
Cutting channel	single channel
Cutting blade	band saw blade(18,000--20,000 rolls/blade)
Cutting blade size	5180*100*1.05
Log length	<=2200mm or <=2850mm
Tolerance	±2mm
Cutting length	<=300mm
Cutting diameter	150-300mm(Adjustable)
Thickness of paper core	<=3 mm
Power supply	15KW 3 phase 4line 380V 50HZ
Machine weight	2700KG

XY-TN-269 Automatic labelling maxi roll paper shrink tunnel packing machine
XY-TN-269 Automatic sealing and shrink wrapping machine series, are widely applied to the shrink package of maxi roll tissue, JRT jumbo roll toilet paper, carton box, foodstuff, beverage, pharmaceuticals,audiovisual products, hardware, cosmetics, books, toys, plastic, electronic components and so on.
VIDEO LINK:https://youtu.be/LNtDKYpYwVA

Machine Model	XY-TN-269
Power source	380V 50Hz three phase
Rated Power	11Kw
Sealing Size	450*220*120mm
Packing speed	10-20 bags/min
Packaging Size	450*220*120mm
Machine Size	L1600×W700×H1300mm
Weight	450KW

XY-SD-B Automatic roll core making machine
Roll core machine is for making the paper core inside the toilet paper roll. It consists of three parts: raw material stand, glue unit, rewinding and cutting unit. It can make different thickness and different diameter paper core by changing the model. This machine easy to operate, running stable, can work with toilet paper rewinding machine. VIDEO LINK:https://youtu.be/xghI38XVXJc

Machine Model	XY-SD-B
Speed	15 ~ 20m / minutes
Kraft paper width	50~70mm
Paper Tube diameter	25mm~100mm (can be customized)
Paper tube layers	2 ~ 30 layers
Paper grams amount	150-400 gsm
Reel Length	adjustable (maximum: 3.0 m)
Defect rate	≤2%
Power	4.0KW 380V 50HZ

Embossing pattern
Finished product Workshop
Company profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Packing and Shipping
FAQ
Q: Are you trading company or manufacturer A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
