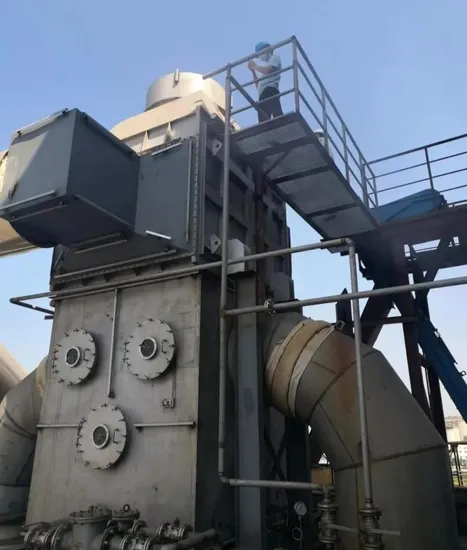

Air Heat Exchanger for Industrial Drying/Thermal Oil Heating
| US$100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SZGL-6-12-1200
Principle
Mixing Heat Exchanger
Style
Steel Type
Material
Stainless Steel
Model Type
Sz
Drying Method
Direct Drying
Condition
New
Heat Exchanger Structure
Tube Heat Exchanger
Tube Material
CS, Ss, Copper
Fin Material
CS, Ss, Copper, Aluminium
Finned Tube Type
Crimped or Extruded
Usage
Drying or Cooling
Transport Package
Wooden Packaging or Customized
Specification
CE, SGS, ISO
Trademark
JIEMA, OEM
Origin
Guangdong Guangzhou
HS Code
8419500090
Production Capacity
5000 PCS / Month
Packaging & Delivery
Package Size
100.00cm * 110.00cm * 15.00cm
Package Gross Weight
100.000kg
Product Description
Air Heat Exchanger for Industrial Drying/Thermal Oil HeatingThis air cooling coils is made of copper tube with copper sheet (or aluminum fin) ,enjoy advanced mechanical tube expander and double-flange aluminum fin structures.
Standard Component Materials:
Tube:Copper tube,Stainles Steel tube.
Fin:Copper sheet ,Aluminum Sheet.
Casing: Galvanized sheet, Carbon Steel,Stainless Steel.
Header:Iron,Copper tube,Stainless Steel.
FeaturesAir Cooling Coils Advantages:
1,Hihgly heat transfer coefficient .
The copper tube expander makes copper tube contact the aluminum sheet and accelerate the turbulent flow,destroy the boundary layer ,and enhance the heat transfer coefficient .
2,Excellent heat transfer performance.
This structure ,together with the rationally designed water route,tube distance and sheet distance offer excellent heat transfer performance,small air resistance,compact structure,light weight and other advantages.
Product ParametersAir Cooling Coils Size:
| Copper tube OD | Hole Pitch | Row Pitch | Fin Material | Fin Pitch |
| 9.52mm | 25.4mm | 22mm | Aluminum Sheet/Hydrophilic Aluminum Foil/Copper Sheet/Epoxy Aluminum Foil | 8PFI~14PFI |
| 12.7mm | 31.75mm | 27.5mm | Aluminum Sheet/Hydrophilic Aluminum Foil/Copper Sheet/Epoxy Aluminum Foil | 8PFI~14PFI |
| 12.7mm | 48mm | 41.57mm | Aluminum Sheet/Hydrophilic Aluminum Foil/Copper Sheet/Epoxy Aluminum Foil | 3PFI~6PFI |
| 15.88mm | 38.1mm | 33mm | Aluminum Sheet/Hydrophilic Aluminum Foil/Copper Sheet/Epoxy Aluminum Foil | 8PFI~14PFI |
