Reasonable Price Brand 28m 32m 33m 36m Self- Climbing Concrete Placing Boom Concrete Distributor Concrete Placer for Sale

Product Description

Product Description

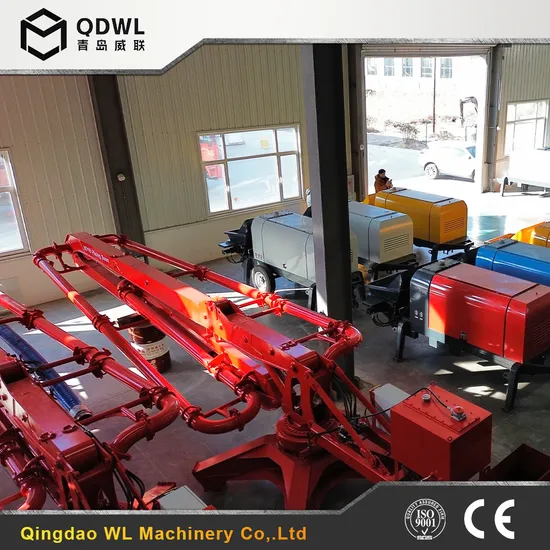

Stationary Boom Placer spider Concrete Distributor Pump Placing Boom
Concrete placing boom used to delivery and place the concrete, which is connected with concrete pump. As a auxiliary equipment for concrete pump, it can delivery the concrete quickly and accurately through the connected pipes like a mechanical hand. It also expands the concrete pumping area, and settles the problem of wall pouring effectively, and solves the problem of concrete conveying preferably.
The details of our equipment
WHICH ADVANTAGES FOR CONCRETE PLACING BOOM IN CONSTRUCTION SITE
1. It reduce much more labor intensity, improve work and economic efficiency. Compared with traditional manual concrete pouring, the placing boom can reduce labor intensity, greatly accelerate the pouring speed, shorten the construction period, and improve the economic benefit because of the large working range, flexible and convenient operation.
2. Improve the construction quality of concrete. In the process of large area concrete placement, the concrete must be transported through the hopper, so the concrete is easy to lose water and thus affect its quality,and the operation rapidity of placing boom can ensure the concrete quality .
3. The placing boom does not contact with the template. So the placing boom makes no vibration to the template, and thus avoids damage to the structure.
4. The placing boom can pour concrete hierarchically and piecewise, so that the template can be uniformly stressed, and the damaged mode is reduced, which is favorable for ensuring the proper size of the structure.
5. After using the placing boom, there is no need to connect and remove the pipes, which reduces the platform operators, neither needs other concrete machines, which also reduces damage of stiffened plate.
Product Parameters
1. It has three arms design, "R" folding. The machine is driven by hydraulic and slewing flexibly, with wide working range. Arms adopt high strength steel plate which is stronger and lighter.2. Two modes of operation: wireless remote control and cable remote control, easy to operate.3. Inner-climbing frames: floor frames or wall (lift or shaft) frames, which are suitable for different jobsites.4. The main electronic components of this Concrete Placing Boom are products of the world-famous brand, with high-quality.

Parameters of compound crusher for sand making

Items	HGY13	HGY15	HGY17	HGY19	HGY21	HGY23
Max. working radius	13m	15m	17m	19m	21m	23m
Tilt working range	0°~84°	0°~89°	0°~84°	0°~84°	0°~84°	-4°~90°
Slewing working range	Full rotary	Full rotary	Full rotary	Full rotary	Full rotary	Full rotary
Motor power of hydraulic washing system	4kw	4kw	5.5kw	7.5kw	22kw	22kw
Working pressure of hydraulic system	20mpa	16mpa	20mpa	20mpa	32mpa	32mpa
Slewing speed	0.46r/min	0.2-0.3/min	0.2-0.3/min	0.2-0.3/min	0.2-0.3/min	0.2-0.3/min
Concrete pipe specification	∅125*4	∅125*4	∅125*4	∅125*4	∅125*4	∅125*4
Length of hose at arm end	3m	3m	3m	3m	3m	3m
Outrigger span	4000*4000mm	4000*4000mm	4231*4231mm	4231*4231mm	5167*5167mm	5167*5167mm
Overall size of the machine	5900x4000x2585	6000x5000x4000	6670x5730x4510	6500x4800x4600	6500x4800x5312	6839x5089x5800
Slewing angle	360°	360°	360°	360°	360°	360°
Weight (selfweight/counterweight )	2.7/4.3t	3.23/5.43t	5/7.2t	5.3/7.5t	7.7/9.9t	8/10.2t

Please choose the crusher that suits you and I will provide you with detailed prices.
In order to overcome the impact of the environment on the work, we can also install the wheels to make a mobile concrete placking boom, which not only solves the problem for customers but also improves the efficiency of their production lines.
Related Products

About us
Qingdao WL Heavy Industry is a large-scale enterprise specializing in R&D and manufacturing, with a plant area of 70 acres. The equipment provided by our factory includes: crushing and screening equipment, mobile sand making equipment and other mining machinery.
Our company is located in Qingdao City, Shandong Province of CHINA .
Our company's main products include mobile crushing stations and various jaw crushers, hammer crushers, cone glass crushers, impact crushers, sand making machines and other crushing and sand making equipment, as well as concrete equipment such as concrete mixing pumps, hydraulic feeders and other equipment
Our equipment is widely used in mining, construction, chemical industry, metallurgy, transportation, water conservancy and other industries.

FAQ
1. Are you a manufacturing?
We are a factory, established in 1998.
2. How long is your delivery time?
10-30 days, if we have the machine in the stock will provide to you with 10 days , if customizd machine will take 15--30days.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
1 year, we have spare parts in the stock can delivery to you within 3days.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
6.What about the Minimum Order Quantity?
A:The MOQ is 1 piece.
