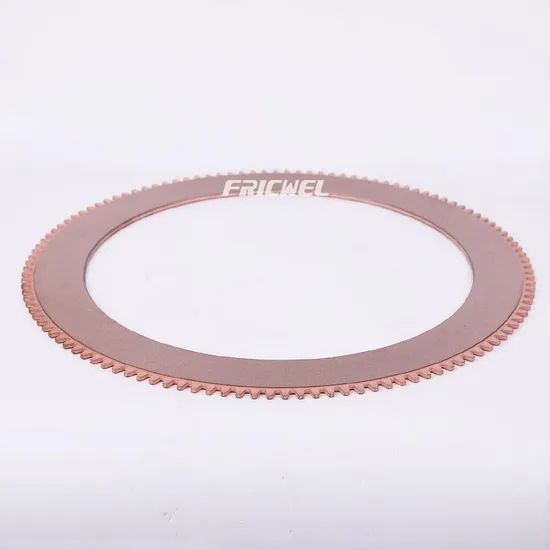

Fricwel® Copper Bronze Material Wet Application Friction Plate (5S0071) for Engineering Machinery

Product Description

Related Products:
6Y5914 Friction Disc
1, Dimension: 384.0*291.3*4.7mm; 120 Outside teeth;
2, Thickness: 4.7mm;
3, Friction disc for Caterpilar Engineering Machinery.
Paper / Carbon / Copper Friction Disc Characteristic Advantages:
1. Wear and friction property Following JB/T 9713-2013 national standard.
2. Friction coefficient range: 0.11-0.15, excellent anti slippage property.
3. Wearing rate : 0.08 -0.12 x 10-8 CM3/J, longer life time.
4. Working temperature 120 Centi degree.
5. Wide range of products, size ∅ 52mm-∅1080mm.
6. Material of steel back plate, C-1045 steel or 65Mn steel.
7. Suitable for all kinds of tractors, engineering machinery, excavator, bulldozer, construction machinery, harvester and forklift.
8. The delivery date will be about 45 days after receiving the advance payment, and the packaging will be in strong export cartons+non-wooden pallets.
Dimensions And Specifications:

NO.	AUTO	OEM NO.	PART NO.	SIZE AND TEETH	MATERIAL	OIL GROOVE
1	ALLISON	6835748	FM1181	319x259.1x3.8\IT62	GRAPHITE	SUNBURST
2	ALVIS	FV719063	FM3812MP	184.9x136.5x1.5\OT72	STEEL	------
3	AUSA	DA1120700601	FM4606MP	216.9x144x2.7\OL3	STEEL	------
4	AUSCO	74552	FM6724MP	151.8x60.7x1.9\OL2	STEEL	------
5	BALKANCAR	KTM1189	FM4051	146x102.6x2.5\IT35	BRONZE	SPIRAL
6	BELAZ	540-170-1352	FM1962MP	265.5197.52.6\OL14	STEEL	------
7	J C BAMFORD	550/43098	FM2997	298x215x4.5\IT72	PAPER	2 PASS
8	BELL	226813	FM3167	450x300x5.3\IT60	GRAPHITE	WAFFLE
9	BENATI	321 2326	FM1305OE	148.6x107.7x2.6\IT52	BRONZE	RADIAL
10	BENFORD	800-9092	FM2829	133.1x92.7x2.1\IT45	PAPER	2 PASS
11	CASE (DAVID BROWN)	A14509	FM3382FP	339.7x133.4x1.5\HOLE6	STEEL	FLEXI PLATE
12	CATERPILLAR	3948242C	FM7379	379.1x79.2x9.1\IT18	CARBON PA	WAFFLE
13	CLARK / DANA	208772	FM0647	165.1x74.2x4\IT19	BRONZE	SUNBURST
14	DAEWOO	3T2567S	FM3384MP	205.5x145.4x3.5\OT43(64)	STEEL	------
15	DAIMLER	554179	FM0709	213.4x142.2x3.2\OT82	BRONZE	RADIAL
16	FIAT ALLIS	000 14687	FM2840MP	290.1x195.1x2.5\IT67	STEEL	------
17	FORD	1P77518A	FM1276MP	138.9x98x1.8\OT50(54)	STEEL	DISHED
18	FRISCH-FAUN	D310 564	FM2678MP	162x105x2.3\IT44	STEEL	------
19	GIRLING	7332 0676	FM1591	224x53.3x4.8\IT22	BRONZE	SPR/WAG
20	TAMROCK	4699665	FM1337OE	133.1x92.7x2.3\IT45	BRONZE	RADIAL
21	TCM FORKLIFT	16382-54721	FM4215	130x85x2.5\IT34	BRONZE	SUNBURST
22	TORO / TAMROCK / SANDVIK	4678031	FM1779	456.7x313.7x7.8\IT34(38)	GRAPHITE	SUNBURST
We have 6000 itemsavallable, please contact us for detailed information.
