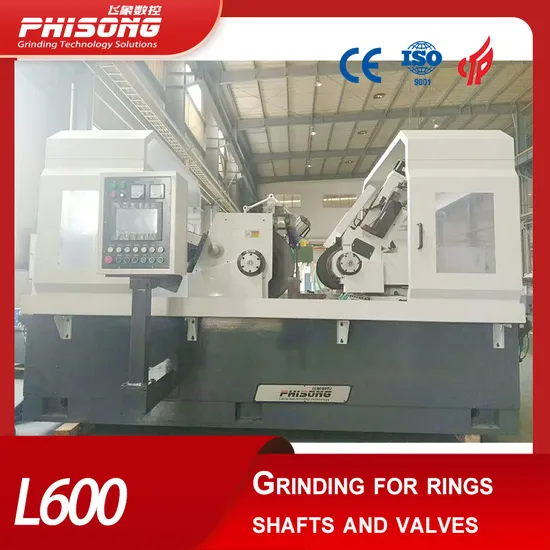

High-Efficiency Centerless Grinding Machine Cylindrical Ginder for Bearing Rings

Product Description

Product Description: Discover unparalleled efficiency and precision with our state-of-the-art High-Efficiency Centerless Grinding Machine, expertly crafted for the meticulous demands of precision bearing ring production.
1.1 Machine Body
Casting, natural aging, and artificial heat treatment. This meticulous process ensures optimal deformation control and significantly enhances the machine's durability for long-lasting performance.
1.2 GW and RW (Regulating wheel)
GW: Engineered with a robust double support structure and a sophisticated hydrodynamic bearing design, ensuring exceptional grinding rigidity and precision.
RW spindle: Double row cylindrical roller bearing structure, delivering superior rotational accuracyy
RW features a double-supported structure, augmented by grease lubrication that requires a single application for extended life, eliminating the need for continual oil maintenance.
RW: Equipped with a gearbox for RW spindle transmission, ensuring unparalleled reliability and performance.
1.3 Feeding
The machine incorporates a double-sided moving layout, with the work rest solidly anchored to the bed for stability.
The feed guide rail of RW and GW frames utilizes a precise flat V-shaped plastered guide rail for smooth operation.
Both RW and GW frames are operated by a servo motor with a ball screw, achieving a remarkable minimum feed increment of 0.001m.
1.4 Dressing for GW and RW (6 Axes)
GW dresser:
Outfitted with a linear guide for the reciprocating guide rail, enhancing the GW dresser's precision.
A servo motor powers the ball screw, ensuring precise feeding and reciprocating actions, with an extraordinary minimum feed of 0.001mm.
RW dresser:
Similarly equipped with a linear guide for the reciprocating guide rail, maximizing RW dresser accuracy.Driven by a servo motor, the ball screw guarantees exact feeding and reciprocation.
Boasting a minimal feed capability of 0.001mm for unmatched precision.
1.5. Cooling
An advanced cooling tank featuring a magnetic coolant separator and a paper tape filter for optimal fluid management.
1.6. Electric
The system is powered by the cutting-edge Q series PLC system from Mitsubishi, offering unmatched operational control.
Fully customizable, allowing users to tailor configurations according to their specific requirements.
1.7. Special Configuration
Includes a sophisticated loading and unloading mechanism, a cantilever-type lifting device for grinding and regulating wheels, and an SBS dynamic balancing system for the GW, ensuring precision and efficiency.
1.8. Technical Data:

L600 centerless machine		6 Axes
In-feed Grinding	Dia.	10-250mm
	Length	590mm
Through grinding	Dia.	10-250mm
	Length	300mm
GW SPEC. (O.D.*width*I.D.)		P600*600*305mm
RW SPEC.(O.D.*width*I.D.)		P350*600*203mm
GW Speed		1100r/min
RW Speed (stepless)		10-200r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	-1°~ +3°
GW min feed amount		0.001mm
RW min feed amount		0.001mm
GW dresser min feed amount		0.001mm
Height from center line of GW & RW to work rest		260mm
Cooling water flow		200L/min
GW Motor		45kw/55kw
RW Motor		5.5kw
Power Supply		3N 50HZ 380V optional
Dimension(L*W*H)		4400*2300*1700mm
Machine Weight		About 12 tons
Accuracy (fine grinding for standard bars D10mm,L50mm)	Roundness	0.001mm
	Cylindricity	0.0018mm
	Roughness	Ra0.16μm

1.9. Main Accessories

Name	SPEC.	QTY	Brand
Control System PLC	Q series	1	Mitsubishi, Japanese
Touch Screen	10.4 inch	1	Mitsubishi, Japanese
Servo motor		6	Mitsubishi, Japanese
Converter for RW	5.5KW	1	Mitsubishi, Japanese
RW motor	5.5KW	1	Wannan Electric
GW motor	45W/55KW	1	ABB
Low-voltage apparatus		1	schneider
Ball screw		6	Nanjing
Dressing linear guide		2	Nanjing
