Floating and Sinking Aquarium Fish Feed Mill Pellet Extruder for Fish Food

Floating and Sinking Aquarium Fish Feed Mill Pellet Extruder for Fish Food

US$29,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HM-70
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Sifter
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Warranty
1 Year
Motor Brand
Siemens
Inverter Brand
Delta
Bearings Brand
SKF
Barrel
Alloy
Material of Screw
38CrMoAl
Material of Machine
Stainless Steel
Capacity
600-800kgs/H
Voltage
220V/380V
After Sale Service
One Year Free Service
Material of Products
Fish Meal, Corn Flour, Rice Flour, etc
Certificates
CE/SGS
Transport Package
Wooden Package
Specification
35000*1500*3500mm
Trademark
Himax
Origin
Jinan, China
HS Code
8438800000
Production Capacity
100sets/Year

Product Description

Samples

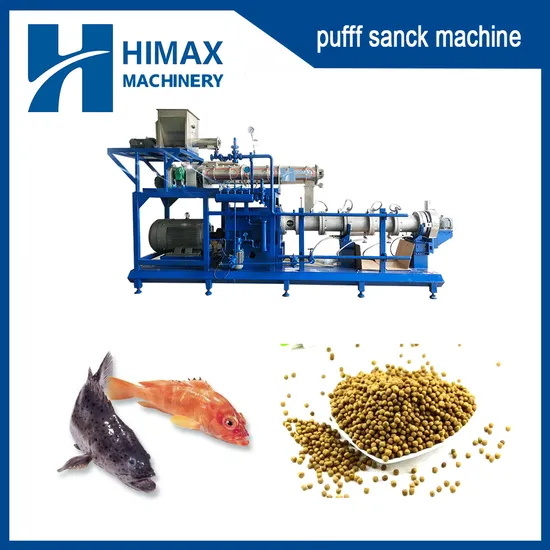

Big output floating and sinking fish feed food pellet extruder
1. Production Description Factory supply floating fish feed pellet mill making machine animal food making equipment processing line is deliberately made for special feed, which needs high in-shape rate and good-looking appearance. fish feed production process is mainly used for sinking/floating/slow sinking fish feed. Effectively protect the aquaculture water body from pollution to improve the quality of life.
2. Technical Parameter
Model Installed Power(kw) Power Consumption(kw) Capacity(kg/h) Dimension(m)
65 processing line 74 52 120-180 17*1.2*2.2
70 processing line 95 70 200-300 20*1.5*2.2
75 processing line 110 82 250-400 26*1.5*2.2
85 processing line 139 104 400-800 28*3.5*4.3
90 processing line 132 75 800-1200 28*3.5*4.3
95 processing line 165 90 1500-2000 35*3.5*4.3
120 processing line 469 380 2000-2500 45*20*22
135 processing line 712 570 3000-3500 50*20*25

3. Raw materials Fish meal, corn flour, rice flour, soya flour, bone meal, meat, animal oil etc.
4. Different shapes are made by adjusting the dies from extruder 1.0mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm...10.0mm depend on fish food dies size
5.Voltage in China
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries. 6. Flow chart
Mixer--- Air conveyor--- Twin-screw extruder ---Hoister --- Dryer ---Flavoring line---Cooler
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.
8. Why choose us
9. Packing and delivery
10. Our Company
