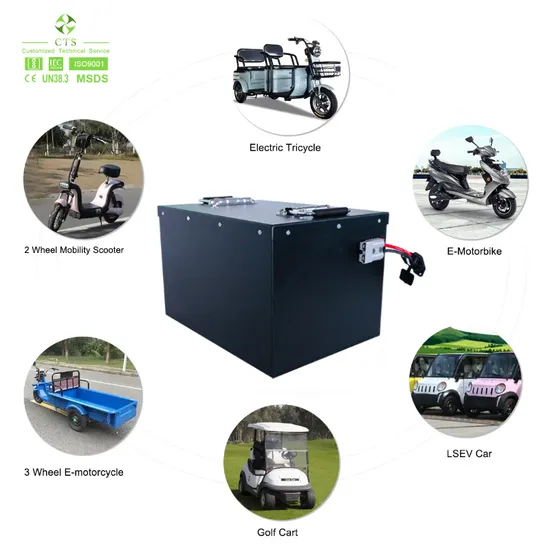

Cts Customized 48V60V72V 100ah 150ah 200ah LFP Battery with IP67 Waterproof Level Housing
| US$850.00-1,800.00 | 2 Pieces (MOQ) |
Basic Info.
Rated Capacity
Optional
Working Life
Optional
Certification
CE, Optional
Color
Black
Terminal
Optional
Application
Boats, Electric Wheelchairs, Solar Energy Storage
Cycle Life
4000 Cycles
Operating Temperature(ºC)
-20~55
Cathode Materials
LiFePO4/Nmc
Voltage
64V/76.8V
Battery Cell
a- Grade
Protection
Built-in BMS
Transport Package
Ply-Wood Case
Specification
Customized
Trademark
OEM/ODM
Origin
China
HS Code
85079090
Production Capacity
50000units/Per Year
Product Description
CTS ev battery pack lithium ion 60V 72V 100ah 200ah lifepo4 battery for ev boat electric car vehiclesDear customer, if you are interested in our battery pack , please Send inquiry to us , our engineering team will provide you best battery solution and quotation !!!LIFePo4 Power Battery
Application: TukTuk, Motorcycle, Scooter, Ebike, E-rickshaw, Tricycle and Other Electric Vehicles
1, Grade A brand new 2C high power Lithium Iron LiFePo4 Battery cell;
2. High power, big current BMS;
3, Top quality metal case and Ip67;
4, Support customized charge and discharge port, several size option
| MODEL | CTS64105 | CTS76105 |
| Cell Type - Chemistry | Prismatic- LiFePO4 | Prismatic- LiFePO4 |
| Rated Capacity | 105 | 105Ah |
| Rated Voltage | 64v | 76.8V |
| Energy | 6720wh | 9064wh |
| Resistance | 30mΩ | 30mΩ |
| Self Discharge | <3% per month | <3% per month |
| Dimensions (L x W x H) | L550*W420*H240mm(Can make it smaller if you want) | L750*W520*H240mm(Can make it smaller if you want) |
| Weight | 55kg | 65Kg |
| Enclosure Protection | IP67 steel case | IP67 steel case |
| Discharge Cut-off Voltage | 50v | 50V |
| Continuous Discharging Current | 105A | 105A |
| Peak Discharge Current | 300A for 10S | 300A for 10S |
| Recommended Discharge Current | 105A | 105A |
| Charging Limited Voltage | 73V | 87.6V |
| Max Charging Current | 100A | 100A |
| Recommended Charge Current | 50A | 50A |
| Charge Temperature Range | 0~50ºC | 0~50ºC |
| Discharge Temperature Range | -20~60ºC | -20~60ºC |
| Recommended Operating Temperature | 15~35ºC | 15~35ºC |
| Available on request | Size, C rate, Communication protocol | Size, C rate, Communication protocol |
1. Build in BMS
2. WiFi and Bluetooth
3. Higher power: 1-3C
4. GPS positioning system
5. Remote control system
6. Using environments(60ºCto -20ºC)
7. Explosion-proof
8. Multi communication protocolFrom the battery cell to the battery pack, CTS controls every production link irstrict accordance with the ISO 9001 standard, arranges quality inspectors tocheck the process details to ensure the safety of the battery, and presents the best products to every customer.
