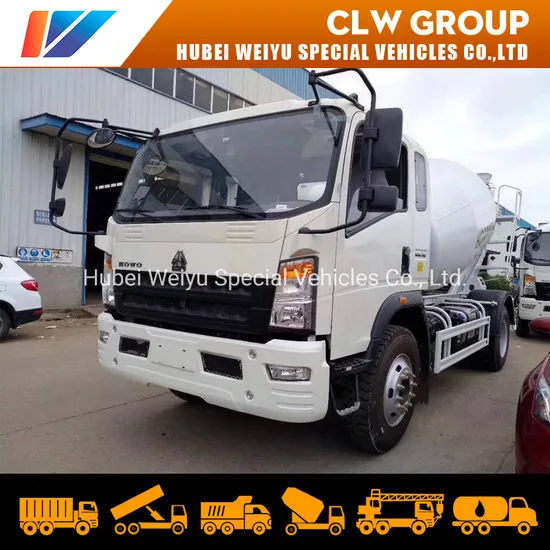

China HOWO 7cbm 4*2 Construction Mixing Vehicles 7000liters Mobile Cement Concrete Mixer Truck to Bangladesh
| US$15,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW5086JBC
Transmission Type
Automatic
Emission Standard
Euro 3
Displacement
6.5L
Payload
10t 12t 15t 18t
Fuel
Diesel
Drive Mode
4x2
Maximum Horsepower
<200hp
Condition
New
Chassis Brand
Dongfeng, Foton, Sinotruk HOWO, Jmc, etc.
Mixer Drum Capacity
6cbm, 7cbm, 8cbm, 5cbm
Drum Material
High Strength Steel
Hydraulic Pump
Eaton, Sauer or Chinese Famous Brand
Hydraulic Motor
Eaton, Sauer or Chinese Famous Brand
Reducer
Bonfiglioli or Chinese Famous Brand
Logo or Pattern
as Per Customer′s Request
Transport Package
RO-RO Ship, Bulk Ship, Container
Specification
6940*2350*3500 mm
Trademark
CLW
Origin
Suizhou, China
HS Code
87059099
Production Capacity
500unit/Month
Product Description
China Howo 7cbm 4*2 Construction Mixing Vehicles 7000Liters Mobile Cement Concrete Mixer Truck to BangladeshProduct Description
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
2. High Tension Steel Q345 Tank Material in 5mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.
Product Specification
| Chassis | Brand | Sinotruk Howo | |||||
| Gross vehicle weight | 15800 kg | ||||||
| Curb weight(kg) | 8250 kg | ||||||
| Wheelbase(mm) | 3650mm | ||||||
| Dimensions(mm) | 6940×2350×3500mm | ||||||
| Max. driving speed(km/h) | 90 km/h | ||||||
| Brake | Air brake | ||||||
| Tire | Number | 6pcs with one spare tire | |||||
| Specifications | 10.00R20 | ||||||
| Fuel tank(L) | 400 L | ||||||
| Transmission | 10 Forwards and 2 Reverse with PTO | ||||||
| Cabin | It can accommodate three people, With Air conditioner | ||||||
| Engine | Brand | Yuchai | |||||
| Horsepower(HP) | 180 HP | ||||||
| Emission standard | Euro 3 | ||||||
| Upper | |||||||
| Mixer drum | Max. Capacity | 7 cbm | |||||
| Material | Alloy steel Q345, 4mm thickness | ||||||
| Vane | Material | Alloy steel Q345, 4mm thickness | |||||
| Specification | Feeding Speed (m3/min) | ≥2.8 | |||||
| Discharging Speed (m3/min) | ≥1.2 | ||||||
| Discharging Residual rate(%) | ≤0.5 | ||||||
| Mixing Tank Rotating Speed (RPM) | 0-17 | ||||||
| Discharging range | 180° full range | ||||||
| Driving system | Option | Option 1 | Option 2 | Option 3 | |||
| Hydraulic Pump | US EATON 5423 | SAUER 75 | SUNNY 56 | ||||
| Hydraulic Motor | US EATON 5433 | SAUER | SUNNY 63 | ||||
| Reducer | Germany ZF4300 brand | Italy Bonfiglioli | China local brand | ||||
| Radiator | China local brand | ||||||
| Water supply system | Water Tank Capacity (liters) | 300 | |||||
| Water supply type | Pneumatic water supply | ||||||
| Control system | Control Way | Connecting Rod Controlling | |||||
| Structure Features | Mixer Tank and Vane use special anti-resistant material. Discharging slot and feeding plate are the same anti-resistant material as the tank. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable. With famous brand driving system. Discharging fast, no residue. | ||||||
| Remarks | The color is optional | ||||||
Reference Photos
Main Structure Diagram
