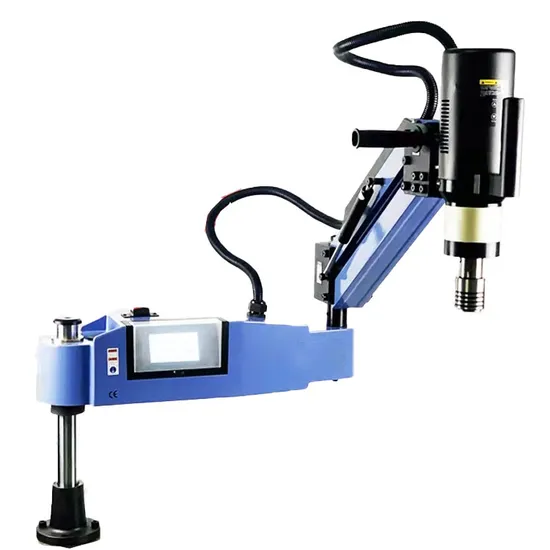

M3-M16 Hot CNC Automatic Flexible Arm Nut Screw Servo Electric Tapping Machine for Pipe Metal Thread Drilling Machine

Product Description

Flexible arm electric tapping machine 1, the machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine
or manual tapping limitations.
2, advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non
deformation, beautiful appearance.
3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy
workpiece, locate quickly, and process accurately.
4, stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
5, automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth
controller.
6, repeated positioning fast, tapping speed, high production efficiency.
Specification

Modle	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M12-M48
Tap size	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M12-M48
Voltage	220v	220V	220V	220V	220V	220V
Speed	0-1200rpm	0-375rpm	0-200rpm	0-200rpm	0-156rpm	50-200rpm
power	600W	600w	1200W	1200w	1200W	1200W
arm	1100MM/1500MM	1100MM/1500MM	1200MM/1500MM	1200MM/1500MM	1200MM/1500MM	1200MM/1500MM
Standard accessory	ISO M3-M12 collet	ISO M3-M16 collet	ISO M6-M24 collet	ISO M6-M30 collet	ISO M6-M36 collet	ISO M12-M48 collet
Optional accessory	600KG magnetic base 1000KG magnetic base
	500*800 working table 900*600 working table
	JIS or Din standard collet		universal head

Various materials can be tapping

Tapping machine Standard accessories:
Optional accessories:
Company profile:
Donguan Thor Machinery Co., Ltd is specialized in producing various sorts and specifications of machine tool accessories and Universal cutter and tool grinder. Our main product are: rotary table, end mill grinder, dividing head, chamfering machine, cutter grinder, Tool grinder, saw blade sharpener, electric tapping machine, ejector pin cutting off machine, dividing head, rotary table etc. Product have reliable quality and long term export to USA, Europe, Asia, South America etc. With high precision and full varieties are deeply trusted and appreciated by customers both at home and abroad. Products are widely used in machinery manufacturing, mould making, printing, advertisement sculpture, paper making, Bridges, mechanical lock, woodworking machinery and other industries. Our company has a group of professional technician and after-sales service people, it have a comprehensive quality control and management in the production or sale, welcome to inquire and visit.The comments and feedback of enduser and dealers is important informatiois to improve the quality of our products , and also good chance to improving the development and production of the product and service way.Thor Team in line with "quality, honesty, innovation, service" purposes, adhere to the concept of excellence. With reliable quality and advanced technology, we can lead in the forefront of the Times.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Tapping machine, end mill grinder, drill grinder, cutter grinder, chamfering machine ,dividing head, rotary table and so on . 3. What is your trade terms?
A : FOB, CFR and CIF all acceptable. 4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; 5: What's the MOQ?
A: 1 set . We want to know: a.What's your Industrial Voltage? b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model! c.If need CIF Price, please kindly tell us the port of destination.
6:What is your sea port?
A: Ningbo/Shanghai/shenzhen Can we use our own LOGO or design for sticker? A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
