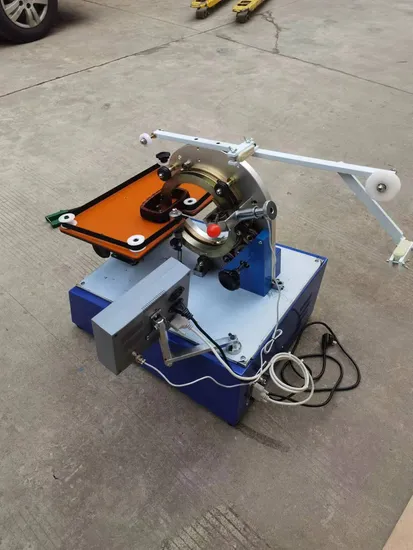

High Production Efficiency Rectangle Coil Winding Machine About Wire Size 0.5-1.6mm

Product Description

Specificaton
GWLA-0319F High production efficiency Rectangle coil winding machine

Wire size	0.5-1.6mm(Single enamelled copper wire, multi-wire winding, the combined strength does not exceed the maximum value)
Finish the outer length/width	60-300mm
Minimum the inner length/width	45mm
Maximum finished height	60mm
Magazine width	4-18mm(Optional)Standard configuration (8mm)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

Features:
1.GWLA-0319F Rectangular Coil Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.
2.The open gap gear rack and hinged gap magazine of Rectangular Coil Winding Machine facilitate core change ,maximzing output.
3.Easily exchangeable magazines secure maximum flexbility.
4.Rectangular Coil Winding Machine can adopts the gear type winding heads,one winding head and interchangeable roller table with different size shuttle (magazine) for different dimensions coils and different wires and tapes,turns,so that to reduce the cost.
5.Extremely powerful,maintenance free AC motors for main drive and core rotation.
Advantage: 1.Wide range of application, Large range of Speed adjustment, wide range of the wire diameter, Multi-style of core,
2.Brake tension adjustable, Good settlement for large outer diameter, small inner diameter, heavy wire coils.
3.High production efficiency, increase winding efficiency by adjustment of suitable brake tension,
4.Each wiring part guarantee no wire damage.
5.Parts highly optimized and universal for general use, Easy maintenance
6.Enquiries can be quoted one day service
7.The storage ring has good material and long service life
8.Stable machine performance
9.Communicate parameters in a timely and thoughtful manner
10.Complete specifications and data Application

Toroidal Winding Machine Application:
Company Profile
Grewin Industrial Group Co., LTD, founded in 1993, is one of China's largesttoroidal winding machine manufacturers.
Widely used in toroidal transformer, current transformer, sensor, inductor manufacturing and other related industries.
Our team always adheres to the concept of serving customers and meeting customer needs, and has won unanimous praise from customers.
Certifications

Our Team with Customers

Packaging & Shipping
Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for ToroidalTransformerWindingMachine
Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
After -sales service:
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service
