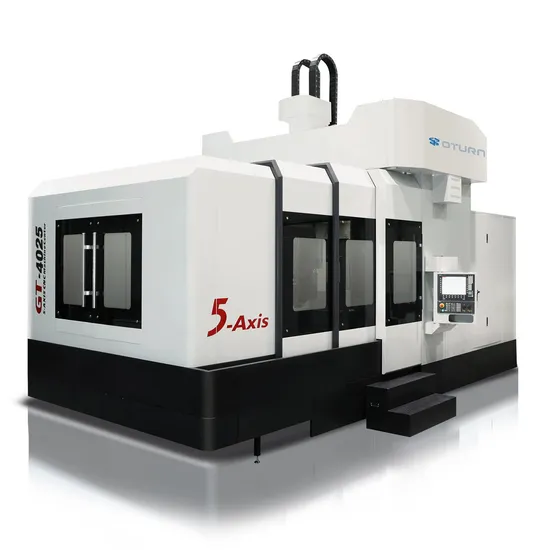

Oturncnc 5 Axis Gantry CNC Machining Center Gt4025 with OEM/ODM Service

Product Description

Product Description
The three-axis adopts internationally renowned brand roller guide rails, which have strong rigidity and excellent dynamic accuracy; The three-axis transmission adopts Taiwan made large-diameter grinding ball screw, which has a compact structure, smooth movement, low thermal elongation, and high accuracy. The screw support forms a stable high rigidity mechanical transmission system; High precision spindle can provide constant and reliable lubrication for spindle bearings; The standard spindle oil cooling system keeps the spindle in a stable working state for a long time. The main components of the machine tool, including the base, workbench, column, spindle box, and saddle, are all analyzed using FEA finite element analysis, which has the characteristics of design optimization, lightweight mechanism, and high rigidity.
The distance between the spindle center and the guide rail surface is short, and the flipping torque is small, which improves the stability of processing. Adopting resin sand molding, high-strength and high-quality cast iron, with a complete heat treatment process to eliminate residual stress, and the contact surface undergoes a precise manual scraping program to ensure the optimal structural rigidity of the entire machine, ensuring the optimal structural rigidity of the entire machine. Multiple product lines with complete specifications, paired with a highly elastic automated exchange head library and a vertical and horizontal tool changing system, providing automated, efficient, and highly productive processing performance. The modular spindle design provides different cutting characteristics and meets diverse machining needs. The Y-axis adopts an ultra-high rigidity roller type linear slide rail, which combines the heavy cutting rigidity of the hard rail with the fast movement and low wear of the linear slide rail, greatly improving rigidity and control.

Product Parameters

DESCRIPITION	UNIT	GT-4025-5X
Travel X/Y/Z	mm	4000/2500/1000
AAxis	0	±110
CAxis	0	±270
Table Size	mm	4200×2200
Max.Table Load	kg/m²	18000()
Distance from Spindle Nose to Table	mm	350-1350
Distance between Column	mm	2500
Spindle Tappe		HSK-A63,,Opention:A100
Spindle RPM		18000
Spindle P.R	kw	30/38
G00 Feed RateX/Y/Z	mm/min	15000/15000/15000
G01 Feed Rate	mm/min	1-10000
Machine Weight	kg	48000
Collant Tank Capicity	liter	500
Lubrication Tank	liter	4
Power Capicity	kVA	60
Air Pressure Request	kg/cm²	5-8
ATC Type		Umbrella Type/Carousel Type
ATC Tapper		HSK-A63 Opention:A100
ATC Capicity		24,Opention:40/60
Max.Tool dia./length	mm	φ78/300(OPφ125/400)
Max.Tool Weight	kg	8(OP:18)
Positioning accuracy	mm	0.008/300
Repeat positioning accuracy	mm	0.005/300
Machine size	mm	10600*4400*4300
Shortest tool change time (tool to tool)	s	1.55

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.
