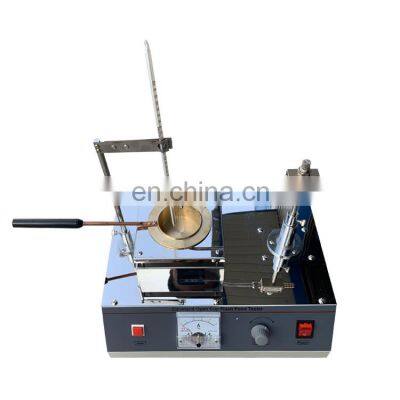

Cleveland Open Cup Flash and Fire Point Tester for Asphalt Bitumen

Product Description

Product Description
Product Usage and FeaturesCleveland asphalt open cup flash and fire point tester PRODUCT OVERVIEWCleveland flash and fire point tester, suitable for The Cleveland Opening cup (REFERRED to as COC) measurement of viscous petroleum pitch, coal pitch and liquid petroleum pitch material with flash point above 79℃, to assess the construction safety.PRODUCT FEATURE1. Electric furnace heating power is continuously adjustable 0~1000W.2. The heating wire is protected by transparent quartz tube, no flame and explosion-proof, and fast heating speed.3. Quartz tube electric furnace heating device, no open fire, explosion-proof, power is continuously adjustable 0~ 600W.ParametersProduct NameAsphalt Cleveland Flash and Fire Point TesterModelSYD-3536Heating device power0~ 600WSweep deviceautomatic sweepNozzle aperture0.6~0.8 mmIgnition sourcegas (or other combustible gas for civil use) Allowable recurrence test errorflash point 8℃, ignition point 8℃Allowable recurrence test errorflash point 16℃, ignition point 14℃Ambient temperature10 ℃ ~ 50 ℃Relative humidity85% or lessSize410 * 330 * 225mmWeight4.75 kgProduct DetailsAsphalt Cleveland Flash and Fire Point Tester1. Electric furnace heating power is continuously adjustable 0~1000W.2. The heating wire is protected by transparent quartz tube, no flame and explosion-proof, and fast heating speed.3. Quartz tube electric furnace heating device, no open fire, explosion-proof, power is continuously adjustable 0~ 600W.ApplicationContact USCangzhou Lovely Technology Co., Ltd It is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & Delivery
