PCB board of electromagnetic flow meter magnetic mag meter

Product Description

Product Description

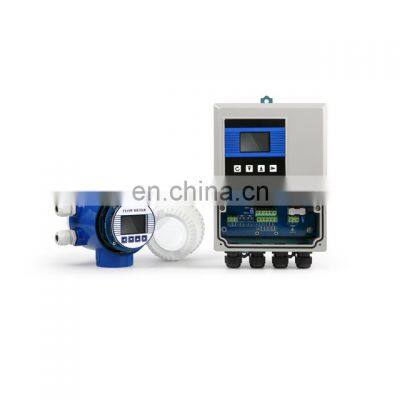

Product DescriptionIntegrated Electromagnetic flow converter 4-20maAccording to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.Connection type with sensorIntegral type and Separate type (converter is connected to the junction box of the sensor through the cable )Detailed ImagesBefore buy electromagnetic flow converter you should know:Electronic flow transmitter is parts of electromagnetic flow meter.ItemElectromagnetic Flow Converter250mA Excitation current35~ 65 ohm125mA Excitation current65 ~ 120 ohmExcitation current125mA,160mA,250mAPower Supply85VAC~265VAC or 110VAC~420VAC or 24VDC or 3.6v lithium batteryPipe size1~3000mmVelocity Range0.01 - 15 m/svelocity resolution0.5 mm/secFrequency25HZ/12.5HZ/6.25HZ/3.125HZCommuncationRS485 (standard),HART (option),MODBUS interfaceLCD DisplayEnglish displayQuick ResponseResponse time of 0.3 secondsAmbient temperature–20~+65℃Relative humidity5%~90%velocity resolution0.5 mm / secLanguage And LCD DisplayEnglish ,With LCD,display flow rate , total flow , velocity etc three internal accumulator, record positive total flow and reversetotal flow and net total 3.6V battery power emf type with backlight.Alarm OutputH-ALM and L-ALM ; Photoelectric isolation, isolation voltage：> 1000VDC；Output driver：Maximum withstandvoltage 36VDC, maximum load current 30mA.CommuncationRS485 (standard)、HART (option) MODBUS interface：RTU format，Physical interface：RS-485，Electrical isolation：1000V； HART interface：Support standard HART protocolFunctionNonlinear Correction Function：Multi segment linear correction,suitable to variety of sensors Automatic Zero Calibration Function Quick Response, Response time of 0.3 seconds Electrode Self-Cleaning FunctionPacking & DeliveryRelated ProductsElectromagnetic flow meterOpen channel ultrasonic flow meterVortex flow meterTDS -100F1 Wall mount ultrasonic flow meterTDS-100H hand held ultrasonic flow meterTDS-100M Modular ultrasonic flowmeterAbout usDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China E-mail:ndt at TEL:86-411-39685079Whatsapp:+8615998577470web:https://tmeasurement.en.china.cn/?spm=a2700.7756200.0.0.769c71d2zcQ6PtSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
