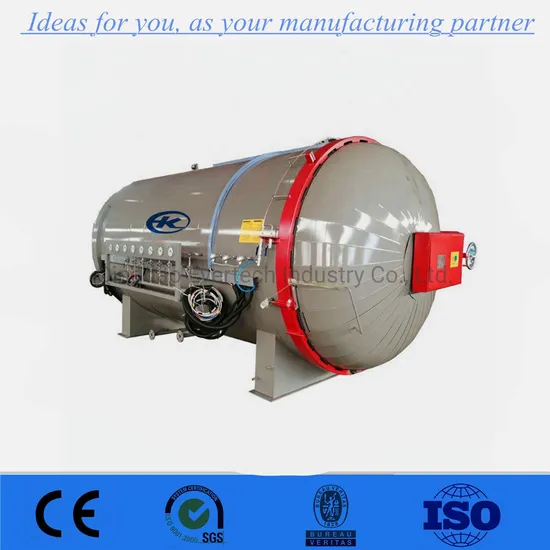

2800X8000mm CE/PED Approved Special Composite Autoclave/Industrial Autoclave

Product Description

Product Description Factory Composite Material Autoclave OEM Manufacturer
Technical Parameters:

Item	data
Type	horizontal ,vertical
Heating ways	steam heat ,thermal oil heating ,elecricity heating ,electric heating air
Operation ways	automatic
Effective length	1000-40000mm
Effective diameter	500-5000mm
Working temperature	100-450 degree
Working pressure	0.5-5.0Mpa
Raising temperation speed	0.1Mpa/min continuous adjustment
Temperature go down speed	± 0.01Mpa
Cooling ways	0.5-7 degree/min continuous adjustment
Point difference temperature	0.5-7 degree/min continuous adjustment
Control temperature and test temperature point	Water cool and wind cool
Vacuum degree of cavity	-0.098Mpa (absolutely pressure )
Extra vacuum pipe	Extract 2-20 pipe extract and test is independent
Test vacuum pipe	Test 2-20 pipe extract and test is independent
Safety device	automatic discharge pressure ,automatic feed water ,automatic alarm, the door has double safty interlock device

Autoclave can realize temperature ,pressure ,cooling and process parameters timing ,real-time on line controlled equipment .Mainly device into below systems: 1. tightness of tank :it is made from tank ,tank door ,high temperature motor ,air duct heat partition layer to form into one high pressure resistant ,high temperature tank 2. safety interlock : it is made from pressure automatic interlock ,manual interlock ,over pressure alarm device. 3. Quickly open door device :manual or automatic quickly open design ,even If power off ,it can start and close the door 4. Sealing device: the door adopt silica gel filling air ,it can bear 500 degree ,forming into one high temperature high pressure sealed container 5. Pressure system: pressure transfer and control system include air compressor ,storage tank ,pressure control valve ,pipe ,pressure transformer ,and pressure gauge . 6. Heating system: stainless steel heating pipe ,high temperature fan ,wind plate ,insulation layer ,temperature control system .heating power satisfy with inside tank max temperature requirement and raising temperature 7. Temperature circulation system :it made up of circulation fan ,wind plate ,and guide flow cover to improve heating transfer and circulation form into uniform temperature 8. Vacuum system :it made up of vacuum pump ,pipe ,vacuum gauge ,vacuum vale ,to supply composite material vacuum condition 9. Automatic control system: adopt PLD and fuzzy control ,to realize the pressure ,temperature ,cooling and so on full process high -precision control and in time record
Main application Composite material processing. Carbon fiber, boron fiber, aramid fiber, glass fiber, metal composites, reinforced plastics and etc..
Widely used in aircraft, missiles, satellites and space shuttle, such as the airplane cabin door, fairing, airborne radar cover, the plane bracket, empennage.

Packaging & Shipping Our machines and equipments are packed in standard package that fit for long distance road transportation and shipping. We ensure our customers can receive the undamaged machine in good condition.
For six years, our products and services have been enjoying a good reputation in this import and export market.We provide the best pre-sale, sale and after-sale service.We have a professional working team that can design for you, to ensure that you buy the best quality and fittest machine in least money.After sale, we provide one-year warranty to make sure that your machine runs functionally and consistently. We also provide lifelong services and spare parts for the machine.
Customer Site
Our Advantages Evertech can provide a key solution according to the specific needs of your process or equipment control for you . Engineers ,electrical engineers as well as service team in Evertech control department are experts in both the full system and the upgrading . When you purchase a Evertech control system meaning that you received a key overall solution .
For six years, our products and services have been enjoying a good reputation in this import and export market.We provide the best pre-sale, sale and after-sale service.We have a professional working team that can design for you, to ensure that you buy the best quality and fittest machine in least money.After sale, we provide one-year warranty to make sure that your machine runs functionally and consistently. We also provide lifelong services and spare parts for the machine. Our Workshop
Company Introduction Qingdao Evertech Industry Co.,Ltd.is a professional manufacture of food processing machine and pressure vessel,inculding sterilization autoclave,jacketed pot,vacuum cooling machine,modified atmosphere packaging machine,vulcanization tank,autoclave,animal waste rendering plant,feather meal production line,fish meal production line,wood processing machine etc.
We have many years' experience in this industry.We can produce the machine according to your requirement and production.Please don't hesitate to contact me if you have any question or you are interested in any of our equipment,we will offer the best service to you within 24 hours.
Welcome to visit our company at any time and thanks for visiting our website! If you are interested in the composite autoclave, welcome to contact me to get more information. We are skillful manufacturer.
