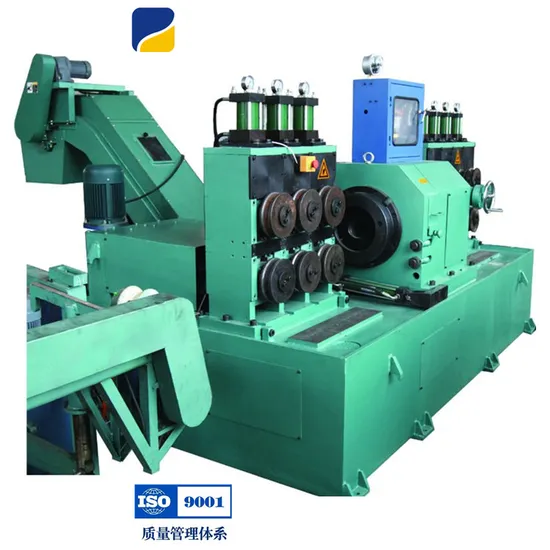

Wxc80 Haige China Steel Round Bar Peeling Lathe Machine for Aluminum Titanium
Basic Info.
Model NO.
WXC80
Type
Horizontal Lathe
Processing Accessory
Semi-Automatic
Guide Rail
Semi-Automatic
Tool Holder
Four
Power Source
Electric
Controlling Mode
Semi-Automatic
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Processing Range
Dia. 20-80mm
Length Range
Not Less Than 2500mm
Accuracy
H10
Transport Package
Seaworthy Package
Trademark
HAIGE
Origin
Yantai, China
Product Description
Steel Bar Peeling Lathe MachineCompany Information
Product Description Series WXC Peeling Lathe Machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling, cutting and polishing, etc.
Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.
During processing, the bar doesn't rotate itself. The cutting tools rotates at high speed to peel the surface of the bar. At the same time, after peeled , the bar keeps walking forward.
Shapes of Workpiece are requested long steel round bar and steel wire rod.
Main Technical Parameters (just for reference)
| Specification | WXC80C (semi-automatic type) | |
| Black bar required | Diameter Range (mm) | Φ20~Φ80 |
| Length Range(mm) | 2500~6000 | |
| Yield Strength σb (Mpa) | ≤1100 | |
| Surface Hardness | ≤HB320 | |
| Straightness | ≤1.5‰ | |
| Diameter Tolerance | according to GB 702-2004 second group | |
| Roundness(mm) | ≤50% of diameter tolerance | |
| Surface Roughness (Ra) | ≤25~50μm | |
| After peeling | Diameter Range (mm) | Φ19~Φ77.5 |
| Diameter Cutting Depth (mm) | 1.0~2.5 (minimum cutting depth depends on the ovality of the raw material) | |
| Diameter Tolerance | h10-h9 | |
| Surface Roughness (Ra) | 6.3-3.2μm | |
| Feeding Speed (m/min) stepless speed | 1.0~10.0(it should be slowed down if the bar is continuous chips, with high strength, high hardness, larger diameter or smaller diameter, larger or smaller cutting depth) | |
| Cutter Head Rotational Speed(rpm) | 430~1200 (stepless speed) | |
| Main Motor (kw) | 75 | |
| Voltage | 380V | |
| Frequency | 50HZ | |
| Total Capacity(kw) | 95(approximately) | |
| Dimension of main machine (L x W x H) | 5.1m × 3.3m × 2.2m | |
| Dimension (loader&unloader included) (L x W x H) | 32.5m x 6.0m x 2.2m | |
| Weight (T) - Main Machine | 8.5 (for reference) | |
| Compressed air (prepared by user) | 0.5~0.8MPa,1.8m³/min, more than 0.8 m³ air storage tank with two stage oil water separator and Compressed Air Refrigeration Drier | |
Packing Details
More details, please contact me
