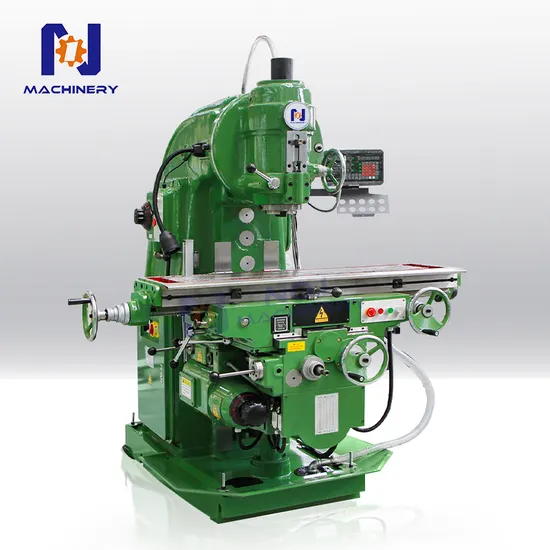

High Precision Universal Milling Machine X5032 Knee Type 3 Axis Vertical Milling Machine

Product Description

Product Description

The standard configuration of the machine includes the following features:
X/Y Axis Automatic Tool Feed & Z Axis Electric Lift:
The X and Y axes are equipped with automatic tool feed, allowing for precise and automated movement along these axes.
The Z axis features electric lift, enabling easy and controlled vertical movement.
Spindle Options:
X5032A: The spindle is fixed, meaning it does not move vertically.
X5032B: The spindle has a stroke of 70mm, allowing for vertical movement over this range.
Integrated Operation Panel:
The machine comes with an integrated operation panel, providing a centralized control interface for ease of use and operation.
Manual Oil Pump:
A manual oil pump is included for lubrication purposes, ensuring smooth operation and maintenance of the machine.

Product Parameters

PARAMETER ITEM	UNIT	XA5032	XA5040
Working desk size	mm	1325x320 (1600x320)	1700x400 (2000x400)
Work table T-slot number/width/spacing	mm	3-18-70	3-18-90
Workbench maximum overload	kg	500	800
X direction (table longitudinal) Manual / Auto	mm	700/680	900/880( 1100 )
Y direction (slide lateral) Manual / Auto	mm	255/240	315/300
Z direction (lifting table vertical) Manual / Auto	mm	370/350	385/300
Fast moving speed	mm/min	X:2300,Y:1540,Z:770	X:2300,Y:1540,Z:770
Spindle aperture	mm	29	29
Spindle speed range	rpm	30-1500	30-1500
Spindle speed series	steps	18	18
Maximum rotation angle of end mill head	.	±45°	±45°
Spindle center to table distance	mm	60-430	130-515
Spindle motor power	kw	7.5	11
Dimensions	mm	2294x1770x1904	2556x2159x2298
Machine weight (about)	kg	3200	4250

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
