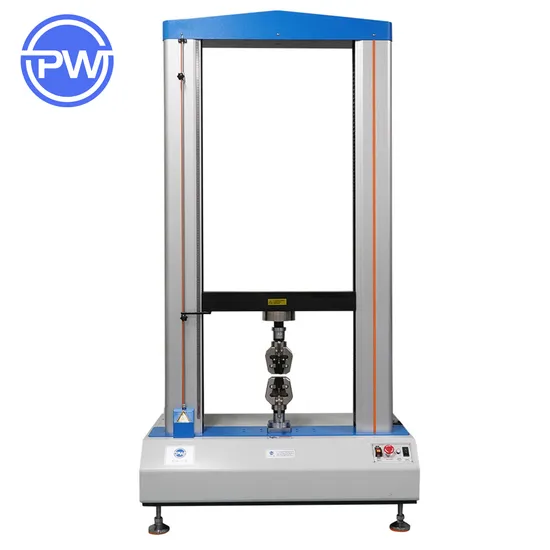

50kn Capacity Servo Control Tensile Test/Testing Machine with CE Approved

Product Description

Product Description
This machine is capable of conducting a wide range of tests on various materials such as rubber, plastic, leather, metal, nylon thread, fabric, paper, and more. It can perform tests including tension, compression, bending, shear, bonding, stripping, tearing, and others. This equipment is suitable for applications in quality control, incoming inspection, physical properties testing, mechanical research, and material development across industries including aviation, packaging, construction, petrochemical, electrical, and automotive, among others. It serves as a fundamental tool for assessing the mechanical properties and quality of different materials.
Features
The universal testing machine is suitable for bending test of metal, nonmetal and composite materials, three-point bending test meets GB/T1449-2005 and GB/T9341-2008 test methods and standards, four-point bending test meets ASTM D6109-2010 test methods and standards, and can also carry out tensile, compression, shear, tear, peel and other mechanical properties test.It can automatically detect the material's maximum force value, yield force value, breaking force value, maximum deformation and yield elongation. According to GB, JIS, ASTM, DIN and other standards, the bending strength, bending modulus, tensile strength, yield strength, breaking strength, maximum elongation, yield elongation, breaking elongation, constant elongation stress, constant stress elongation, elastic modulus and other parameters can be calculated automatically.
The measurement and control system is specially designed for microcomputer electronic universal testing machine, microcomputer hydraulic universal testing machine,s and microcomputer press.It can be used for tensile, compression, bending, shearing, tearing and stripping tests.PC and interface board are used to collect, save, process and print test results.The maximum force, yield force, average stripping force, maximum deformation, yield point, elastic modulus and other parameters can be calculated.Curve processing, multi-sensor support, graphical interface, flexible data processing, and MS-Access database support, make the system more robust.

Product Parameters

Item	PW-UD50
Capacity (MAX)	50KN (optional 10N~50KN range force sensor)
Control Mode	full computer control mode, powerful software function
Power Unit	N, kN, gf, kgf, lbf, kP, tf (SI), tf (long), etc.
Length Unit	mm, cm, Inch, m, km, um, etc.
Power Resolution	1/500,000;
Accuracy	±0.1%
Travel Resolution	1/500,000mm
Accuracy	±0.1%
Effective Stroke	1200mm
Speed Range	0.01~500mm/min; (customizable)
Test Space	420mm left and right (customizable)
Shutdown Mode	overload shutdown, emergency stop button, automatic shutdown of specimen damage, automatic shutdown of upper and lower limit settings
Machine Power	Servo motor drive
Machine Dimension	88×66×208cm
Net weight of machine	420KG
Power	750W
Power Supply	220V 50~60HZ
Machine Equipment	1 USB communication line, 1 software
Optional Accessories	tensile fixture, compression fixture, etc.; (purchase different fixtures according to different test standards)

Company Profile
Company Introduction:
PW (Guangdong) Instruments Co., Ltd. was established in March 2007, a national high-tech enterprise, located in Room 901, Building 11, No. 2 Houjie Dongye Road, Houjie Town, Dongguan City, Guangdong Province, China . Through years of operation, the company has gathered a group of talents with considerable qualifications in the industry, and has accumulated a large number of high-quality customers. In order to better serve customers in East China, the company established PW Instruments (Shanghai) Co., Ltd. in Shanghai and set up an instrument exhibition hall and testing center in Suzhou Industrial Park.
Corporate Culture:
Vision: Become a world-renowned instrument manufacturer
Mission: Provide customers with high-quality testing equipment
Values: Customer satisfaction is our aim.
Certifications

FAQ
Q: Are your company a trading one or a factory?A: Factory, More than 15 years focusing on test equipment field, 10 years exporting experience.Q: After an order is placed, when to deliver?A: Generally about 10-25 days, If we have inventory, we can arrange shipment within 3 days.Please be aware that our production lead times depend on specific items and item quantities.Q: What about the warranty with after-sales services?A: The testing machine is guaranteed for 12 months by PW, we can help you to repair your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handle guest problems and complaints in a professional and timely.Q: What about the product's services and quality?A: Each piece of equipment must be carried out 100% quality examination and test when shipping and delivering goods. Product use training, each of our products provides video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.A: Considerate Service Different countries plugs, manually change the voltage from 110V to 220V, insurance indicator.Q: Can your products be customized?A: Yes, our product can be customized according to your parameters.
