Interpolated Y-Axis Power Turret Tail Top Milling Compound Center CNC Lathe dB-6152-Series, Featuring Programmable Hydraulic Tail Top and Four-Axis Linkage Proc

Product Description

Model characteristics
1.Equipped with imported high-precision linear guides, ball screws, and precision bearings.
2.Fully leverages the major advantages of four-axis coordinated heavy cutting and high rigidity.
3.A compound machining center with interpolation of the Y-axis powered turret tail top, a new model replacing the direct Y-axis.
4.Programmable hydraulic tailstock, with one-button clamping/release tailstock, enabling easy workpiece clamping and dual-speed (fast/slow) control.
5.Processing high-rigidity components with powered turrets, utilizing compound machining functions in conjunction with Y-axis interpolation for complex part processing.
6.Capable of precise machining of large batches of steel, stainless steel, drilling, tapping at the end of shafts, and long shaft part processing with tailstock capabilities.
7.Equipped with four-axis lathe, milling, drilling, cutting, tapping, and other linked machining functions to accomplish drilling and tapping operations at the ends of components.
8.Side-mounted power tool modules with drilling, tapping, and milling functions, completing precise drilling and milling processes for various shaft components.
Standard configuration
- New generation system
- NSK bearings from Japan
- THK ball screws from Japan
- Overall cast iron bed
- Rexroth guides from Germany
- Taiwan Jiancheng/Taiwan Pusen spindle
Technical parameters

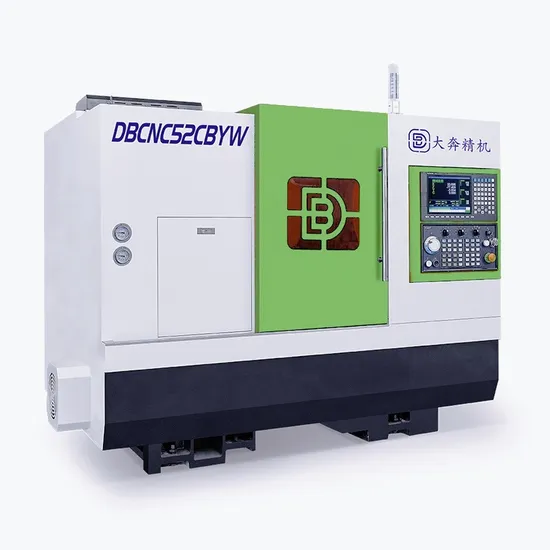

Model	DBCNC52CBYW
Item	Describe	Parameter
production capacity	Turning diameter on the bed	Φ680mm
	Maximum machining diameter	Φ500mm
	Maximum processing length	520mm
Spindle	Spindle nose end	straight:A2-6
	Spindle bore	Φ65mm
	Bar diameter	Φ52mm
	Spindle speed	0-4000
	Hydraulic collet	Positive: 8 "or 52 type tube clamp
Power Turret	Turret model	BMT45/BMT55
	Number of tool positions	12T/15T
	OD shanks	25mm
	I.D. Toolholder	Φ32mm or Φ40mm
	TD axis (milling axis) speed	0-4000rpm
Slide	X-axis travel (diameter)	500mm
	Y-axis travel	120mm(±60mm)
	Z-axis travel	300mm/600mm
	X-axis rapid displacement	20
	Y-axis rapid displacement	20
	Z-axis rapid displacement	20
Mechanical precision	Spindle indexing repeatability	±0.005°
	Spindle indexing positioning accuracy	±0.002°
	X/Y/Z Repeat Positioning Accuracy	0.002mm
	X/Y/Z axis positioning accuracy	0.003mm
Motor (loanword)	Spindle motor	11KW/15KW
	X-axis	3.1KW
	Y-axis	3.1KW
	Z-axis	3.1KW
	TD axis (milling axis) speed	3.9KW
	Hydraulic pump motor	3.1KW
	Cooling pump motor	1.5KW
Quantitative (science)	Hydraulic tank capacity	65L
	Cooling tank capacity	150L
Sizes	Machine external dimensions (L*W*H)	3200*2500*2000
	Overall weight	5500KG

Detailed Photos
Explore our Multi-Functional CNC Lathe for turning, milling, drilling, and cutting with high-rigidity. Perfect for metal processing with online support and a 1-year warranty.
Company Profile
Part of the manufacturing workshop
Application field
Part of the shipment
Exhibition images
Customer visit pictures
common problem
1:How to choose the most suitable machine?
A:Please tell us your specifications, and we can help you select the best model, or you can choose a specific model. You can also send us the product drawings, and we will select the most suitable machine for you.
2:How can I obtain a quotation?
A:Please tell us the model of machine you need, including the quantity and any other requirements.
3:Where is your factory located?
A:Our factory is located in Dongguan, Guangdong Province China. The postal code is 523000. We warmly welcome you to visit.
4:What are your terms of trade?
A:FOB
5:What are the payment terms?
A:T/T, 30% down payment upon order placement, and the remaining 70% balance payment before shipment.
6:How can I trust your company?
A:The quality of our products and our reputation are the greatest assets of our company.
