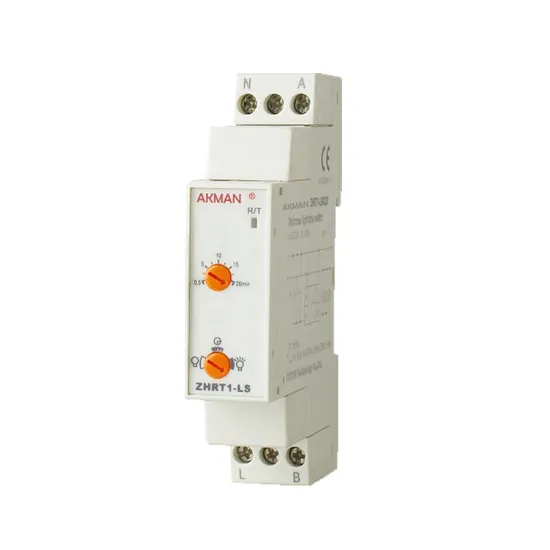

Multi-Delay Time Relay Delay on/off AC220V Used in Staircase Lamp Control
| US$7.76-9.13 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
ZHRT1-LS
Phase
1
Electricity Type
AC110V, AC220V
Number of Pole
1
Load
Micro Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electronic Type
Size
Miniature
Type
Electric Parameter Relay
Product Name
Zhrt1-Ls
Rated Control Supply Voltage
AC110V AC220V 50/60Hz
Contact
1no
Rated Power Consumption
AC:<1.5va DC: <1W
Delay Range
0.1s~10s, 10s~100s, 1m~10m, 0.1h~10h, 10h~100h
Contact Configuration Capacity(a)
16A
DIN Rail Standard
Width 35mm
Carton
100PCS
Transport Package
Carton Packing
Specification
91*18*62mm
Trademark
AKMAN
Origin
Zhejiang China
HS Code
8536490000
Production Capacity
5000PCS/Week
Product Description
Multi-delay Time Relay Delay On/Off AC220V Used In Staircase Lamp ControlApplications Applied to the corridor electrical control circuit, connected by a predetermined time or break the circuit to delay turn off lighting ,
and indicates that the circuit state
Features: 1.Compact in size, with a width of 18mm that can be mounted onto 35mm DIN rail. 2.Built-in high-performance microcontroller with strong resistance to interference and high reliability. 3.LED indicator lamp indicates working status. 4.Both manual and automatic modes available1.
Model Description
Model Selection Table
| Model | Function | Rated supply voltage | Contact | Delay range |
| ZHRT1-LS | Staircase switch | AC110V AC220V | 1 NO | 0.1s~10s,10s~100s,1m~10m,0.1h~10h,10h~100h |
Technical Parameters
| Rated control supply voltage | 110VAC,220VAC,380VAC 50/60Hz Allowable fluctuation range: ±10% |
| Rated power consumption | AC:≤1.5VA |
| Delay range | 0.5min~20min |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power-on interval | ≥200ms |
| Electrical Life | 105 |
| Mechanical life | 106 |
| Contact capacity | AC-15:Ue/Ie AC240V/1.5A,AC380V/0.95A |
| Altitube | ≤2000m |
| Contact configuration capacity(A) | 16A |
| IP Class | IP20 |
| Class of pollution | 3 |
| Allowable relative humidity | ≤50%(40ºC)(No condensation) |
Function diagram
Wiring Diagram
Dimensions(mm)
