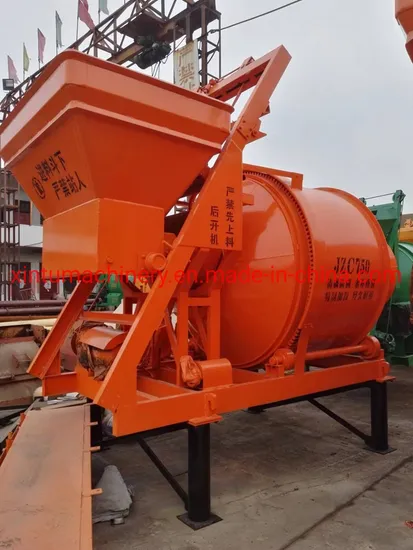

Factory Supply Concrete Mixer 500 Litre 0.50 Cubic Meter Jzc500 Diesel Engine
| US$4,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JZC Concrete Mixer
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Welded Molding Machine
Structure
Steel Structure
Productivity
350-750L
Feeding Height
1400mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Orange
After Warranty Service
Video Technical Support, Online Support, Spare PAR
Max. Aggregate Size
40-60mm
Core Components
Motor, Gear, Engine
Working Cycle Period
60s
Transport Package
Nude
Specification
2.8x2.1x2.7m
Trademark
XINTU
Origin
China
HS Code
847431
Production Capacity
300sets/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
2000.000kg
Product Description
2023 factory cement concrete Mixer with hydraulic pump concrete mixing machineProduct Description
Rotating drum mixer can be used to mix dry, plastic, fluid, lightweight aggregate, concrete and varieties of mortars. rotating drum mixer is applicable to all types of large and medium-sized precast plant, construction sites, roads, bridges, airports, tunnels and other construction projects. rotating drum mixer adopts diesel engine, which can realize the smooth work of machine at bad conditions. Main Features
1. It is a middle capacity self-dumping mixer. 2. Heavy duty channel chassis provides durability and stronger support in the areas where you need it. 3. Jack legs give maximum stability throughout the mixing cycle. 4. Tow chassis with pneumatic typed wheels. 5. Hopper lifting model: hydraulic tipping hopper. Steel wire rope hoisting tipping hopper is available. Technical Parameters of JZC, JZM Concrete Mixer:
| Model | JZC350 | JZC500 | JZM500 | JZM750 |
| Discharge volume | 350L | 500L | 500L | 750L |
| Charging volume | 560L | 800L | 800L | 1200L |
| Capacity | 10~14 m3/h | 18~20 m3/h | 25~30 m3/h | 30~35 m3/h |
| Aggregate sizes | ≤60m | ≤60mm | ≤70mm | ≤80mm |
| Rotating speed | 14 r/min | 13 r/min | 13 r/min | 12.26 r/min |
| Max. drag speed | 20km/h | 20km/h | / | / |
| Mixing motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
| Lifting motor | 4.5KW | 5.5kw | 5.5kw | 7.5kw |
| Pump motor | 0.55kw | 0.55kw | 0.75kw | 0.75kw |
| Weight | 1950kg | 2400kg | 3000kg | 4000kg |
| Dimensions (L x W x H)mm | 2766x2140x3000 | 3500x2200x3200 | 5200x2065x3200 | 5650x2065x3535 |
