Jz-535 Efficient Accurate Drilling CNC Machine Center

Product Description

Efficient and accurate Drilling and Milling CNC Machine Center
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
The machine tool is made of high-strengthresin sand casting, and the machining centerhas a wide guide rail base. The screw rod is a3210/4010 double nut ball screw, driven by anAC servo motor.
The machine tool has good rigidity and highprecision stability. The system is equipped withRS232 communication interface, which issuitable for processing varous small andmedium-sized parts with high precisionrequirements and complex shapes.
The system comes standard with Taiwan'snew generation
Product Parameters

Workbench			Workbench size (W*L)			mm	600*320
			Max capacity			mm	150Kg
Principal axis			Spindle speed			rpm	9,000/12,000
			Spindle power			mm	3.7KW(5.5kw)
			Spindle taper hole				BT30
			Distance from workbench to spindle end face			mm	120-470
Feed			Quick movement	X-axis		m/min	30
				Y-axis		m/min	30
				Z-axis		m/min	30/48
			Travel	X-axis		mm	500
				Y-axis		mm	350
				Z-axis		mm	350
			Feed rate			mm/min	10000
ATC			Tool magazine capacity			ea	12/16
			Knife handle type			st	BT30
			Maximum driling diameter			mm	25(35)
			Maximum tapping diameter			mm	M18(M22)
			Maximum miling cutter diameter			mm	100
			Repetitive positioning accuracy			mm	±0.005
Barometric pressure						kgf/cm2	6
Power supply quantity						Kva	10
Machine tool dimensions						mm	1400X1500x2100
Machine weight						Kg	1850

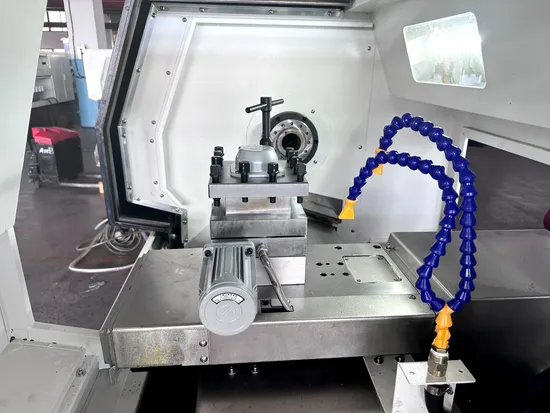

Detailed Photos

hot selling product
https://haochenmachine.en.made-in-china.com/product/SJFUTRalVbYG/China-Efficient-Accurate-Drilling-and-Milling-CNC-Machine-Center.html?pv_id=1ieqkv2qjdb5&faw_id=1ieqkv42meee
Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
