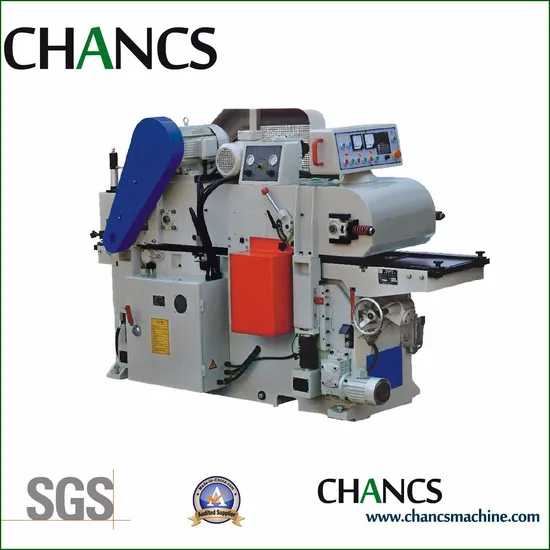

Double Side Planer

Product Description

Double Side Planer

1.Features:
1. Stable Performance: Machine is heavy-duty design, processed by numerous aging and 5- axis CNC, suitable for large planning capacity demand.
2. Long life span: Worktable applied unique wear-resistant material and assure long term working.
3. Reliable operation: Spindles processed by tempering treatment, precision machining, and dynamic balancing with high quality material. Operation is reliable and stable.
4. Wide range working: Elastic pressure claw used for feeding device. Compression strength and speed can be adjusted according to different thickness of wood material. Quality is assured.
5. Convenient operation: Quick tool change design on bottom shafts, can let operator run machine in high efficient, safely and conveniently.
6. High quality on wood processing: Stepless variable speed and inverter used in feeding system. Wood procession quality is highly confirmed.
7. Protection: Overload protection can make sure feeding system work safely.
8. Feeding system applied automatic lubrication pump to lubricate feeding chain plate automatically, convenient and high auto grade; while vertical pillar skateboard lubricated by manual lubrication pump, flexible and durable.
9. Quick adjustment and replacement design: Belt tension can be adjusted quickly and planning tools are easily replaced.
10. High precision: Feeding speed and working thickness adjustment are controlled by PLC+ Text display , precision up to 0.1mm
11. International electric components working in the machine, stable, reliable and easy replacement.
2.Parameters:

Model			RMP650	RMP450
Working Width			25-650mm	25-450mm
Working Thickness			10-170mm	10-170mm
Mini Working Length			310mm	310mm
Max Planning Capacity	Top Spindle		8mm	8mm
	Bottom Spindle		5mm	5mm
Dust Port Diameter			Φ150mm	Φ150mm
Knife Cutting Diameter			Φ127mm	Φ127mm
Spindle Speed			6000r/min	6000r/min
Feeding Speed			6-24m/min	6-24m/min
Motor Power		Top Spindle	15Kw/20HP	7.5Kw/10HP
		Bottom Spindle	11Kw/15HP	5.5Kw/7.5HP
		Feeding	4Kw/5.5HP	2.2Kw/3HP
		Lifting	0.75Kw/1HP	0.75Kw/1HP
Total Motor Power			30.75Kw/41.5HP	15.95Kw/21.5HP
Overall Size (LxWxH)mm			2900x1700x1900	3400x1500x1900
Total Weight			4000Kg	2800Kg

3.Detailed Images:
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
