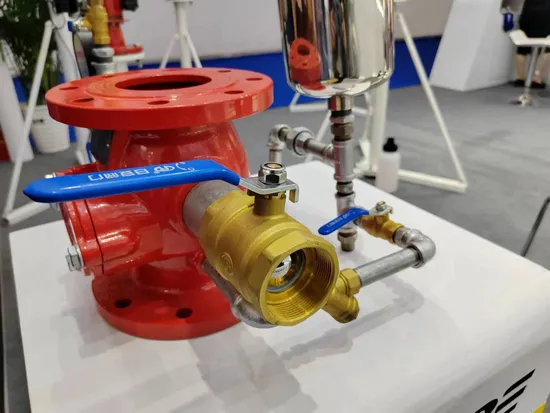

High Quality Plent 6" Wet Pipe Sprinkler System Alarm Check Valve

Product Description

Product Description Plent FM Certified Alarm Check Valve is a wet pipe sprinkler system water supply check valve that makes possible the installation of sprinkler systems in buildings not subject to freezing temperatures. It is designed so that water pressure in the piping system will hold back water pressure at the valve until a significant flow of water occurs such as a sprinkler is activated.
There're two sizes available from Plent Machinery Co., Ltd for customer's choice. For more info. please refer to below tech data chart
Our Advantages
STANDARD TRIM PACKAGES
include: 1. All necessary nipples and fittings
2. All standard trim accessories
3. All necessary gauges
Main Application Oil & Gas Fuel Storage Area Fire & Rescue Mining Sea Conditions Chemical Industry
Product Parameters

Product	FM Certified Alarm Check Valve
Model#	WAV1 4"	WAV1 6"
Inlet Connection	ANSI Flange	ANSI Flange
Outlet Connection	ANSI Flange	ANSI Flange
Shipping Weight	55lbs /25 kg	75lbs /35kg
Max Working Prssure	175 PSI / 1.2 Mpa (12 bar)
Factory Hydro Test	%100 @ 350 PSI / 2.4 Mpa (24 bar)
Standard Finish	Red Painting
Flange Specification	Flange: Class 150 ANSI B16.1
Required Accessories	Standard Trim
Optional Accessories	Retard Chamber, Water Motor Alarm, Alarm Pressure Switch
Installation Manner	Vertically
Certificate	FM

Detailed Photos
Machining, Warehouse and Testing Building:
Fire fighting Exhibition in Beijing
Our Company Since the company was founded in 1996, SXFIREPRO has evolved and grown from a small factory in the yard with the limited capacity to only make couplings, to a sophisticated and leading factory, that now spans over 35000 square meters and employs over 60 skilled engineers, craftsmen, and mechanics - a figure that continues to grow. As one of the family-owned fire equipment manufacturers in China, SXFIREPRO continues to instill the tradition of product excellence, acute customer care, and superior service.
Over the past few years, SXFIREPRO has pushed and expanded its product line to fire monitors, fire nozzles, bladder foam tanks,foam concentrate,fire robots, etc., Unlike most fire equipment manufacturers, sxfirepro also delivers on the meaning of custom-crafted appatatus. Working side-by-side with each customer, sxfirepro will construct your vehicle based on your specific department's needs, The Shengxin team - from the best engineers and draftsmen to highly skilled mechanics and craftsmen will always give you a surprise on the quality. An sxfirepro product is as unique as our customers.
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if the cost is below USD20 with freight on your cost.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. Or it is 15 days if the goods are not in stock, it is according to quantity.
Q. what is your payment term?
A: T/T 30% payment in advance, balance to be paid prior shipment.
Q: what is your main market?
A: ,Western Europe,North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia.
Q: Can I have my own customized product?
A: Yes, we can supply logo Print and package desiged based in our MOQ.
