Automatic Farm Combine Harvester for Potatoes Garlic with Bagging Function

Product Description

Product Description

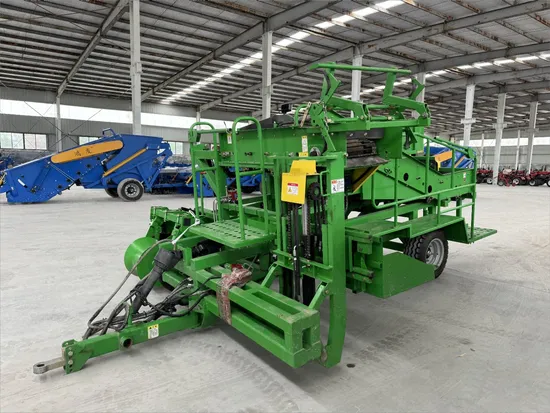

Potato Harvester 4UQB-80
The 4UQB-80 combine is improved on the basis of the original small sorting and harvesting machine, so that the digging depth is increased significantly to improve the harvest efficiency, while the multi-channel transmission chain equipment makes the cleaning effect of potatoes better, reducing the soil attached to the potato skin, thereby reducing the weight.

Agricultural special combined harvester potato harvester with gear bearing with 4UQB-80
Features of potato harvester : The potato combine is an efficient agricultural machine designed specifically for harvesting underground root crops such as potatoes.
These harvesters combine advanced technology and design to improve harvesting efficiency, reduce breakage rates, and ensure a smooth harvest.

Detailed Photos
Multi-angle presentatio Harvester rear side display.The front end pulls and the rear end tires move in tandem to maintain a smooth ride and turn the direction,making the harvest process more flexible and convenient.
From the left side of the harvester and the rear of the sorting table, sorting work, can stand three to four people at the same time, with the machine for sorting and bagging work.
The bearings used in the multi-functional potato combine harvester produced by the DE ZHOU HONGYOU AGRICULTURAL MACHINERY CO.,LTD are ETK bearings, and the chains used are Donghua chains.Bearings and chains are international standards. In addition, for the main engine frame, gearbox, if damaged within one year, DE ZHOU HONGYOU AGRICULTURAL MACHINERY CO.,LTD will provide you with a replacement service.
Product Parameters
4UQB-80

Model	4UQB-80	Supporting Horsepower	80~120hp
Structural Style	pull-type	Pick Up The Smallest Size	40mm
Walking mode	Wheel Type	Conveyor chain gap	40/45mm
Working Size(length*width*height)	6100*3600*2300mm	Blade Material	65Mn
Transport Dimensions(length*width*height)	6100*3600*2300mm	Volume Of Collection Box	≥1m³
Overall Weight	2850kg	Discharge Height	360mm
Working Width	800mm	Conveyer Type	Grid Chain Type
Operation Efficiency	0.1-0.15 ha/h	Tool Forward Speed	1.5-6km/h

Certifications

Packaging & Shipping
To ensure the safe delivery of your products, we offer a range of packaging options including direct loading container, Wooden case packing, iron frame wrapping and direct wrapping. You can select the most suitable option based on your specific requirements.
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop.
Customer visit factory
