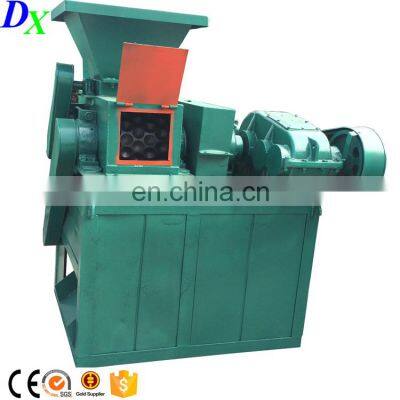

Charcoal ball briquette making pressing forming machine

Product Description

Product Description
Charcoal ball briquette machine
Product Description
Introduction of Charcoal ball briquette machine:
This briquette machine can be used to shape different materials, like: coal, charcoal, iron, aluminum, copper, lime, coke, etc mine ore.
We have three kinds of briquette machine: common briquette machine, high-pressure briquette machine, and hydraulic briquette machine
Please tell me the materials you will use to shape, then i can recommend best model for your reference.
Different rollers of Charcoal ball briquette machine
The material of roller is: 65Mn or 9Cr2Mo.
If you require common briquette machine, the roller material is 65Mn.
If you require hydraulic briquette machine, the roller material is 9Cr2Mo. Both is wear resisting material.
It can service 10-12months(depends on your used raw materials)
65Mn roller of briquette machine price:
9Cr2Mo roller of briquette machine price:
Final briquette from Charcoal ball briquette machine:
Egg-shaped ball, oval-shaped ball, circular-shaped ball, square-shaped ball, columnar-shaped ball, banding-shape ball, cake-shaped ball, etc.
Different sizes from the Charcoal ball briquette machine:

Data of Charcoal ball briquette machine

Model	290	360	400	450	550	650	750	850
producing capacity	1-2TPH	4TPH	6TPH	8TPH	10TPH	15TPH	20TPH	30TPH
Width of roller	200mm	240mm	250mm	280mm	300mm	336mm	400mm	500mm
Diameter of roller	290mm	360mm	400mm	450mm	550mm	650mm	750mm	850mm
power	5.5kw	7.5-15kw	11-18.5kw	15-22kw	18.5-30kw	30-45kw	55-75kw	75-90kw
Speed of main shaft	27r/min	18r/min	15r/min	15r/min	13r/min	13r/min	13r/min	10r/min
Retarder	ZQ235	ZQ350 ZQ400	ZQ400 ZQ500	ZQ500	ZQ500 ZQ650	ZQ650 ZQ750	ZQ750	ZQ850
Type of pressure	Mechanical	Mechanical	Mechanical	Mechanical Hydraulic	Mechanical Hydraulic	Mechanical Hydraulic	Mechanical Hydraulic	Mechanical Hydraulic
Material of roller	65Mn	65Mn	65Mn	65Mn 9cr2Mn	65Mn 9cr2Mn	65Mn 9cr2Mn	65Mn 9cr2Mn	65Mn 9cr2Mn
Form of structure	Two roller single press	Four roller double press	Four roller double press	Four roller double press	Four roller double press	Four roller double press	Four roller double press	Four roller double press
Bearing of main shaf		319*4	319*4	319*4	2097724*4	2097732*4	2097732*4	2097734*4
Main shaft	45# Steel	D: 95mm 45#steel	D:110mm 45#steel	D:120mm 45# steel	D:135mm forging steel	D:165mm forging steel	D:165mm forging steel	D:250mm forging steel
Shape and size	According to your request

Packaging & Shipping
Delivery for Africa customer:
Delivery for Russica customer:
Our Services
Our service:
1. 24 hours online service
2. We can design the machine and provide drawing paper depends on your facts
3. Engineer available to install machinery overseas
4. We will pick you up at airport or railway station when you come to visit our factory
Company uphold: honesty, quality first, customer first for the purpose.
Company Information
GongyiDongxing Machinert company information:
Gongyi Dongxing Machinery company is specialized in the import, export and wholesale biomass charcoal machinery production line, like: wood crusher, sawdust dryer, briquette machine, and carbonization stove,etc. The final briquette or charcoal are best fuel for barbecue or boiler.
Our aim is to supply the market with top quality charcoal equipment, and provide best service and best price for our customer.
Welcome to visit us or free consultancy, networking, and knowledge sharing.
Website : http//hngydx.en.china.cn
Charcoal ball briquette machine
