Outdoor Indoor Advertising Flexible Panel Cheap Price P3.91, P7.81 Full Color Shop Window Screen Curtain Video Glass Wall Transparent LED Display
Basic Info.
Model NO.
P3.91
Pixel Pitch
3.91 mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption
350W / m²
Pixel Density
32768 Dots /Sq.M
Scanning Mode
1/16 Scan
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
Certification
CE, RoHS, FCC
LED Type
Nation Star SMD1921
Transparency
55%
Transport Package
Wooden Case
Specification
500 * 1000 mm
Trademark
PRTLED
Origin
Shenzhen
HS Code
8528591090
Production Capacity
3000 Sq. M/Month
Product Description
Full Color P3.9 P7.8 Transparent led display,glass screen shopping advertisingPRODUCT FEATURES
1. Made with panel size 500*1000mm,convenient for different screen size
2. Super slim thickness,the thinnest is only 9mm for the module,the most thickness is 65 mm for panel
3. Lightweight, only with 7.5 kgs for each panel,
4. High transparency, up 55%,good light transmission
5. Ultra power saving, only with 1/3 power consumption of traditional screen
6. Strong and good transparent PC material with long life span
7. Fast installation with U-shaped kayser,easy connecting between panels
8. Seamless splice without peripheral structure

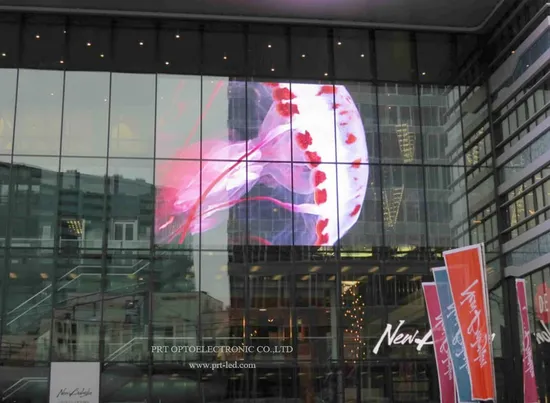

9. Application: widely used for shopmall window, stage background,clear led video wall
| P3.9 SMD1921 Transparent LED Glass Screen Specification | |
| Pixel pitch | 3.91mm x 7.81mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD1921 |
| Size of module | 250mm x 250mm |
| Resolution of module | 64x32dots |
| Size of cabinet | 500mm x 1000mm x 65mm |
| Resolution of cabinet | 128x128 dots |
| Material of Cabinet | Aluminum + PC |
| Weight of Cabinet | 7.5 Kg/pc |
| Brightness | >2500cd/sq.m |
| Density | 32768dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-50M |
| Maximum power consumption | 640W/sq.m |
| Average power consumption | 400W/sq.m |
| Driving method | 1/16 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC110V~240V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 47~63Hz |
| Refresh frequence | >2880Hz |
| IP grade | IP42 |
| Life Span | >50,000 hours |
| Data transafer method | RJ45/DVI |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
More pictures for good understanding this kind of transparent display panels:
