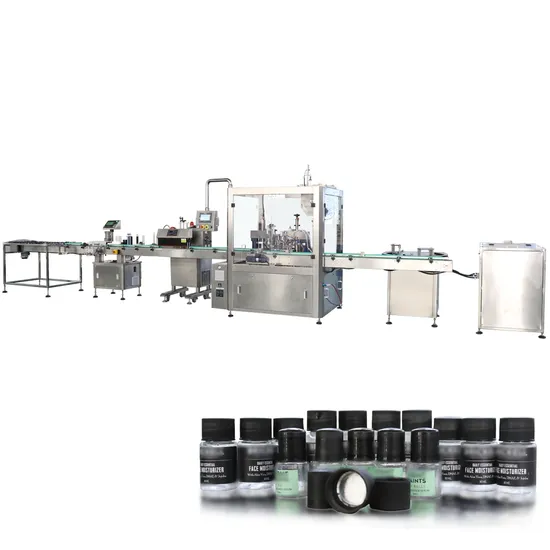

Cream Small Bottle Filling Capping Sealing Machine

Product Description

Product Description
The latest PX-BFC80 SmartFiller integrated filling line is rated for 40 fills per minute, depending on fill volume. Use in-line filling of 10-180ml containers. The machine is servo driven, which helps maintain accuracy and speed, you just need to enter the ideal filling volume and speed in the HMI interface, that's what the servo motor is for. At the top of the machine we use a mixing hopper, which makes the device suitable for liquids and pastes. The stirring motor drives the stirring paddle, so that the filling material has strong fluidity. It can fill different bottles, and we set a scale in the adjustment part to record the positional relationship of different specifications of bottles to the equipment. This greatly improves the convenience of the device.
This fully automatic baby oul metal ball filer essential oil is the latest design. The device will automatically arrange the upper rollers
and insert them into the bottle mouth. At the same time, the equipment sets the feeding table, filling, and capping stations on a host,
which greatly reduces the footprint. This is an excellent choice for customers with a small workshop area.
You may be warrying those ?
1- How can i fill so many formats my bottles with the machine perfectly withour complex adjusment ?
2- How can i understand your quality ?I do not want any kinds bad machine which failed to live up to my investment .
3- How can i know your machine life ? It looks always beautiful but only in your room .
4- How can i install such a big long machine by myself ? It looks never eaasy at all .
5- How can i recognize the real difference in chinese market ? So many suppliers quoted me every day !!!
6- What can i do if machines get broken in broken ? Who is gona to help me ?
To look how PAIXIE boys do
Compared with tradtional machinery , PAIXIE smart filler has below characters which are benefited to each customer operation experience :
1- With servo driving , operator just edit the filling parameter on HMI to realize all kinds products packing .
2- 150mm width SS304 protection frame which equied with induction switch is able to stop machine whenever operator open the plexiglass door which is good for human protection .
3- PAIXIE'S machines are all equiped with scale rules for diffeferent kinds bottle replacing , which is convenient for date recording and save the time in adjusting .
4- All PAIXIE'S machine are made of SS304+SS316 which avoiding pollution perfectly , protect custoomer's product quality .
5- Machines are deliveried as whole which solving the stress of after sell installation for customer . PAIXIE'S technicians are standing by all time for on-site service .
Real machine factory scene
Product Parameters

Model	PX-BFC80
Yield(pcs/min)	40BPM (customized)
Filling heads	1(customized)
Filling pump	Piston pump
Work voltage	110/220/380V 50/60HZ
Air presstion	0.6MPA
Accuracy	±1%
Power	3KW
Driving	Servo motor
Metal ball inserting	Positioning inserting
Pump volume	200ml
United size	1200*900*2200mm
Hot filling	Normal temperature filling
Weight	550kg
Material	SS304+SS316
HMI	7.5" Color Touch Screen Control
Protection	Comprehensive Safety Alarm System
Speed controller	Variable Speed Controls
Detecting system	Vial Detector & Counter

Real details
Unscrambler
Filling capping station
Metal ball
Elevator
Servo motor in running
