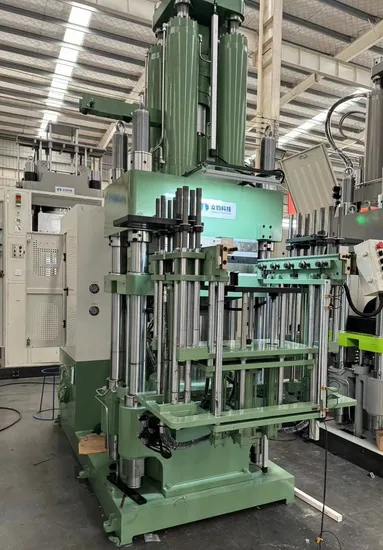

Rubber Vulcanizing Machinery with ISO&CE&BV Certificate Molding Injection Machine

Product Description

Product DescriptionRubber (vertical first-in first-out) injection moulding machine (we accept custom-made)
ZJAX200-400T
Machine features :
1.The first trap of the first-in first-out injection system with self-cleaning function.
2.The back pressure is consistent during measurement and the injection accuracy is high.
3.Brand new colour high-definition touch screen.
4.The new Simens editable operating system allows free editing of device actions.
Suitable product:
Industrial product /Medical/Life style /Aerospace/Automotive parts/Seals
Detailed PhotosHunan Zhongjun Technology Co., Ltd is located in Yue yang city, Hunan province, China, covers an area of 100000 square meters. Our company was established since 1993 and founded by a group of professional engineers who are well experience in rubber & silicone machinery manufacturing. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.warmly welcome to visit our factory !

Product Parameters

Type	ZJAX-200T	ZJAX-300T	ZJAX-400T
Injection volumn (cc)	2500	4000	5000
Injection pressure (bar)	1700	1700	1700
Clamping force (Ton)	200	300	400
Heating plate dimension (mm)	560*600	700*700	800*800
Opening stroke (mm)	500	550	600
Minimum mold thickness (mm)	60	60	110
Total power (kw)	33	45	55
Machine size (m)	2.8*1.3*3.5	3*1.5*4.3	3.5*1.5*4.7
Whole weight (Ton)	7	9	12

Certifications
Packaging & Shipping
After sales service:
1-Quality guarantee period:Within 12 months,During this period,if there are troubles with machines,the manufacturer should send engineers to repair or replace the spare part if needed.
2-According to demand of buyer,the supplier send engineers to guide the install and the debug.But the buyer should undertake all cost,such as ticket,food,hotel for supplier,also they need pay 200 USD for engineer one day.
3-For the damage caused by the buyer,supplier provides the spare part and repair it with the best price.
4-If machine is broken up due to the not correct of the buyer within the one year period,supplier can send engineers if need to assist buyer,but buyer should undertake all the cost.
5-Within one year guarantee period,if machine broken down due to its quality itself,supplier should solve this for buyer with its cost.
6-Two parties can discuss other items which are not mentioned in this place.
Our Advantages:
We are own factory,so we make all the machine parts by ourselves, Besides, you can get the customize service with your requirements,At present, we have established strong business relations with domestic and international customers. Persisting in the aim of "striving for existence by quality and striving for development by sincerity ", we sincerely hope to enter into friendly cooperation with customers on the basis of superior quality, competitive prices and excellent after-sales service, striving for joint resplendence.
FAQ
1.Q:Which Model should we choose?A:we have many models for your choice,before suitable model is recommended,please tell us the application,materials,output and pressure you want.
2.Q:can we have customized model ?A:Yes,We can make the customized machine according to your actual requirements.
3.Q:Do I need to know technical skills to operate this machine ?A:No,This machine has no professional requirements for the operator.however,we provided technical instruction for your backup.
4.Q:what should we do if there are some problems with the machine ?A:You can refers to the Operate Instruction or contact us for online instruction.Also,our engineers are available to service overseas.
5.Q:What's the lead time ?A:Within a month.
6.Q:How about the package ?A:We have wooden case to protect the machine from damage during the Long-distance delivery.
7.Q:How should I pay for you if I place this order ?A:Generally,T/T,30% deposit 70% before shipment.
