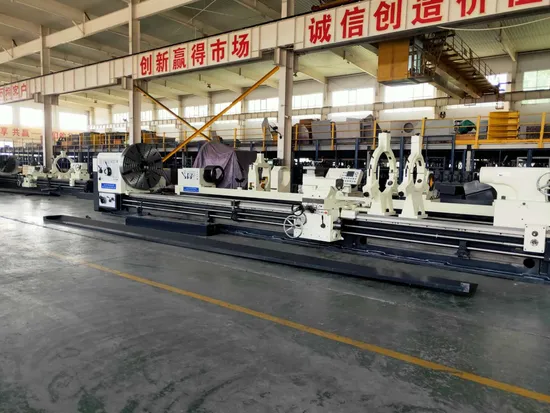

Cw61140d-16m Common Conventional Horizontal Lathe Large Size Lathe 1400mm Swing Over Bed
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW61140D-16M
Guide Rail
Horizontal Guide Rail
Tool Holder
Single Turret
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Horizontal Lathe
Swing Dia. Over Bed 1440mm
Big Lathe
6tons
Heavy Duty Lathe
6tons
Center Distance
16m
Large Size Lathe
1400mm
Transport Package
Wood Package
Trademark
precion
Origin
Dezhou, Shandong
HS Code
8458190000
Production Capacity
500 Sets/Year
Product Description
CW61140D AND CW62140DThese lathes can perform to turn end-faces, cylindricl surfaces and
internal holes of various parts as well as metric,inch,module and pitch threads.The top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed of the carriage with the top slide feed,moreover,the machines may be used for drilling,boring and trepanning.
They are characteristics of power,high spindle speed,high rigidity.The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.
Main Specifications and Features
Main Specifications and Features
| SPECIFICATION | Model | ||
| CW61140D CW62140D | |||
| Max.swing diameter over bed | 1440mm | ||
| Max.swing diameter over carriage | 1030mm | ||
| Max.swing diameter on gap | 1900mm | ||
| Width of bed | 755mm | ||
| Max.length of workpiece | 16000mm | ||
| Loading weight between centers | 6t | ||
| Spindle nose | A15(1:30) | ||
| Sindle bore diameter | 130mm | ||
| Taper of spindle bore | Metric No.140# | ||
| Range of spindle speed | clockwise rotation 3.15-315r/min, 21kinds, counter-clockwise rotation 3.5-290r/min, 12kinds | ||
| Spindle front bearing inner diameter | 200mm | ||
| Longitudinal feeds range | 0.1-12r/min 56 kinds | ||
| Transversal feeds range | 0.05-6mm/r 56kinds | ||
| Rapid speed | Z-axis | 3740mm/min | |
| X-axis | 1870mm/min | ||
| upper toolpost | 935mm/min | ||
| Metrec threads range | 1-120mm 44kinds | ||
| Inch threads range | 3/8-28 TPI 31kinds | ||
| Module threads range | 0.5-60mm 45kinds | ||
| Pitch threads range | 1-56TPI 25kinds | ||
| Taper of tailstock sleeve | Morse NO.80 | ||
| Diameter of tailstock sleeve | 160mm | ||
| Travel of tailstock sleeve | 300mm | ||
| Main motor power | 22kW | ||
| Rapid motor power | 1.5kW | ||
| Coolant pump power | 0.125kW | ||
Stand Accessories
1. four-jaw chuck F 1000mm 1set
2. steady rest F70--480mm(for more than 2m) 1set
3. follow rest (for more than 2m) 1set
4. Morse 6# centers 1set
5. center sleeve 1set
6. tools 1set
7. foundation screws 1set
Special Accessories Special order
1. steady restF 400--700mm
2. four-jaw chuck F 1250mm
3. Taper-turning device
4. Chasing dial device
5. Inch lead screw,
6. levelers
7. roller support (opened steady rest)
