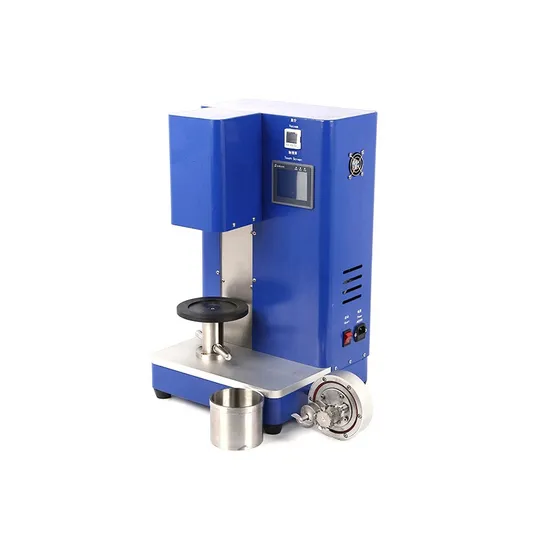

Compact Lab Planetary Vacuum Mixer Machine for Li-ion Battery Slurry Stirring

Product Description

Introduction: Product Description
AOT-PVM-500 Compact planetary vacuum mixer is a high-efficiency equipment with vacuum and dispersion function, It is suitable for the lithium ion battery lab research during anode and cathode electrode slurry mixing process, it can be also used for the powdered and ceramic material materials mixing.
Main feature:
1. The equipment comes standard with a two-axis planetary stirring structure, agitator mixing paddles, and different mixing shaft forms and combinations according to the size of the mixing tank.
2. Designed the positive and negative stirring function, which can achieve high speed mixing of higher viscosity slurry, good mixing uniformity
3.Vacuum environment, effectively remove the bubbles generated by the mixing process, the machine comes with a vacuum system
4.Multi-speed operation, set the stirring speed and time of each section, automatic mixing and shutdown
5.Elastic bracket design for easy operation and safety during vacuum mixing process.

Model	Planetary Vacuum Mixing Machine AOT-PVM-500
Source	AC220V/110V
Rated power	600W
Mixing rotate speed	MAX600 turns/min
Vacuum pump	Built-in vacuum pump
Vacuum degree	Less than 0.08Mpa
Multi segment function	Three segment can be set
Mixing Jar	standard double-shaft screw stirring paddle
Mixing tank volume	Optional 150ml 250ml 500ml SUS304 Stainless Steel Tank
Mixing time	0~600min, it can be set
Dimension	about 320m*320mm*560mm(L×W×H)
Machine weight	about 30kg

Company Profile
Xiamen AOT Battery Equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.
Certifications
The products produced by the company have obtained anumber of certificates
Exhibition
AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.
Cooperative brand
Packaging & Shipping
FAQ
Q1:How long do you need to prepare my goods?
A:3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).
Q2:Can we have our logo or company name to be printed on products or package?
A:Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.
Q3:How can I install and operate the machine by myself?
A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
Q4:How to get technical support after purchasing?
A: Our factory provide online technical support in English , you can easy catch us online by Skype, Wechat, and Email, if you need any remote assistant support, then we will support you though Team Viewer.
Q5:What's the warranty for the items?
A: We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. Any quality issue, we will deal with it immediately. Warranty for equipment is 1 or 2 year (12 or 24 months depends on the type of products), If the equipment parts are damaged due to non-human factors within one year, we will provide replacement parts free of charge
