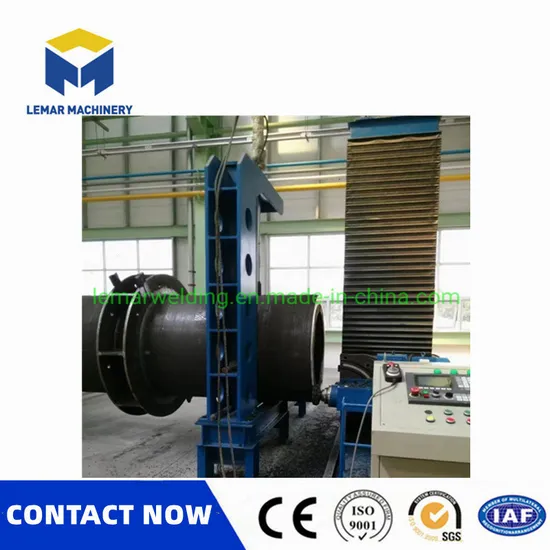

Hydraulic Clamping 1500*2000mm CNC H-Beam Box Beam End Face Milling Machine

Product Description

Hydraulic clamping 1500*2000mm CNC H-beam box beam End Face Milling Machine CNC face milling machine is suitable for cutting H-beam, round pipe section, and both ends of BOX-beam. It can mill workpiece plane, chamfer trapezoid surface and T-slot. Drilling can reach φ50mm, and boring can reach φ400mm.
The cutting and milling surface has high precision and low noise, and the stepless speed change can be implemented after installing the frequency conversion device.
The whole machine has strong rigidity, is not easy to be damaged, easy to maintain, has various functions, and has large geometric dimensions.
CNC End face milling machine is an ideal equipment for H beam box beam production line. Technical Details:

Item	Details
Model	DX1520 End Milling Machine
Milling for	Pipe or Box beam H beam CNC End Facing Machine
Control mode	CNC Control
Workpiece box beam Height	2000mm
Workpiece box beam Width	1500mm
Facing Head Power	7.5 KW
Horizontal feed motor power	2.2 KW
Horizontal Facing Speed	Stepless within 150∼600mm/min, VFD, inverter control
Power supply	380V, 60Hz, 3p
Milling head spindle speed	75~420 rpm
Vertical Facing Speed	Stepless within 150∼ 600mm/min, VFD, inverter control
Column along Horizontal and Milling carriage along Vertical direction Idle Speed	1200 mm/min., constant
Facing Head Spindle Rotation Speed	100 ~ 630rpm
Travel Guide in Horizontal and Vertical Way	Heavy duty Precise Linear Guiderail, Assembled
Travel Transmission	Horizontal by gear and rack; Vertical by leadscrew
Angle of Facing Head along Vertical Surface	0 ∼45 degree
Vertical Milling Carriage Travel Driving Motor	3 kW

Instructions for use of CNC face milling machine 1. Before starting the work, observe the lubrication of the bed guide rails, slide tables and other parts of the Box beam End face milling machine. Because the machine has many lubrication points, it should be ensured that the lubrication is sufficient. For other precautions, please refer to the operating regulations of the machine tool industry.
2. Pay attention to the fast and slow operation of the slide table:
(1) Slow cutting motion: press the fast-forward button to fast-forward the worktable, and when cutting is required, press the work-forward button to start the worktable; when the cutting is finished, the worktable stops first, and then presses the fast-reverse button to quickly return the worktable , when the rear limit switch is pressed, the table stops moving. (2)Rapid movement of the table of T beam end face milling equipment: At this time, you can select the fast gear, and jog fast forward (or fast backward) to the required position, which can reduce the auxiliary time of cutting.
