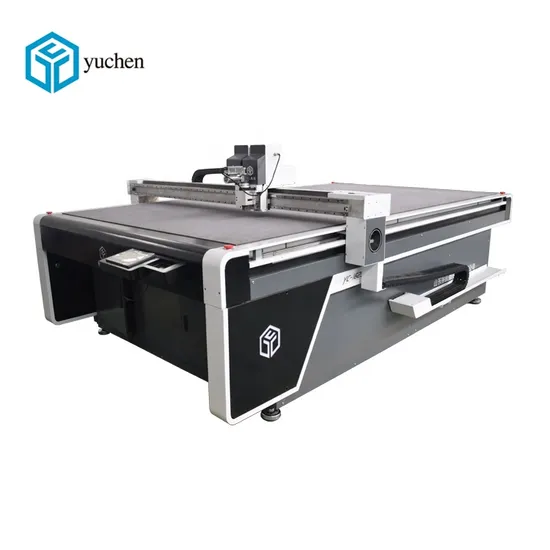

Composites Digital High Speed Cutter for PVC Fabric Tensile Membrane Fabric Structures
| US$8,000.00-26,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YC-1625L
Condition
New
Control
Automatic
Application
Paper, Plastic, Leather, Fabric, Fur; Kt Board; Acrylic; Soft Glass; XPE; EVA Foam
Power Source
Electric
Layout
Horizontal
Knife Tool Type
Oscillating Cutting Tool
Safety Device
Infrared Adopted; Sensitive Response; Safe and Rel
Motor
Panasonic Servo 11kw
Voltage
220V/380V 50Hz
Cutting Tolerance
0.1mm
Maximum Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Cutting Thickness
0.1-20 mm (Subject to Material)
Fixed Mode
Vacuum Absorb
Drive System
Hiwin Linear Rail; Panasonic Motor
Transmission Interface
Ethernet
Transport Package
Wooden Case
Specification
2500*1600mm
Trademark
Yuchen
Origin
China (Mainland)
Production Capacity
30 Pieces / Month
Product Description
Composites Digital High Speed Cutter for PVC fabric Tensile Membrane Fabric Structures YC-1625LModel: YC-1625L Machine size can be customized
Brand: Yuchen
Applicable cutting materials: Different kinds of soft materials, such as car mats, car seat, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, gasket,etc
Application: Widely used in automotive interior industry.
Functions: Cutting(oscillating cutting tool),
Optional cutting tool: The cutting tool is optional according to customer's requirements, such as Oscillating cutting tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:
| Model | YC-1625L | YC-1630L | YC-1625A |
| Working area | 2500×1600mm | 3000×1600mm | 2500×1600mm |
| Operation properties | continuous cutting with high efficiency, 7*24 with zero downtime | ||
| Safety device | Infrared sensor; sensitive response; safe and reliable | ||
| Maxi cutting speed | 1200mm/s | ||
| Translational velocity | 1500mm/s | ||
| Applicable materials | Heat Insulation sound absorption acoustic insulation material, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, etc | ||
| Multifunctional head | Oscillating cutting tool | ||
| Cutting thickness | 0.1-20mm (subject to material) 0.1-10.0mm (subject to the material cutting) | ||
| Cutting tolerance | ±0.1mm | ||
| Transmission interface | Ethernet | ||
| Driven system | Motor: Panasonic Linear rail: Hiwin | ||
| Fixed mode | Vacuum absorb | ||
| Supply voltage | 220V 380V±10%,50HZ AC 220V 380V±10%,50HZ | ||
| Rated power | 11KW | ||
