500-2000mm Width Harvesting Machine for 20-70 HP Farm Tractor

Product Description

Potato harvester with tractors
This series harvester is suitable for harvesting potato sweet potato garlic and other underground rhizome crops
Potato harvester Description
1.The reciprocating sifting can conveys the potatoes and soil onto a vibrating sieve grid2.Our potato digger is mainly used for reaping potato, sweet potato, peanut, onions, garlic, Chinese yam, taro and otherunderground rhizome crops.3.It has the advantages of high efficiency, low breakage, fast to leak the soil, long service life.4. Key components adopt international advanced technology, to improve the whole life
Potato harvester product technical parameters

4UX Cut Plate Potato Harvester is a fixed shovel harvester driven by a four-wheel tractor
Model	4UX-83(QP)	4UX-90(QP)	4UX-100(QP)	4UX-110(QP)
Structural Style	Three point suspension
Walking Mode	Wheel type
Number of tires/tracks	2 PCS
Tire/track spacing (center)	1010mm	1080mm	1180mm	1280mm
Ground clearance	170mm
Working dimensions (LxWxH)	2130× 1120× 1160mm	2130× 1190× 1160mm	2130× 1290× 1160mm	2130× 1390× 1160mm
Overall weight		310kg	330kg	350kg
Working width	830mm	900mm	1000mm	1100mm
Work efficiency	1300-2000m2/h	1300-2600m2/h	1300-3300m2/h	1300-3300m2/h
Supporting power	≥40HP	≥40HP	≥50HP	≥50HP
Supporting power output shaft speed	540r/min
Supporting suspension width	560mm	570mm	570mm	570mm
Excavation device type	Blade fixed blade
Blade material	65 Mn steel
Excavation depth adjustment range	0-250mm
The min size of picking up	38.5mm
Type of cleaning and separation device	vibrating screen
Type of conveying device	Grid chain type
Gap between conveyor chains (center to center distance)	50mm
Chain rod material	55CrSi
Collection method	Ground picking
4UD Potato Harvester is a dynamic shovel potato harvester driven by a four-wheel tractor
Model	4UD-83	4UD-90	4UD-100	4UD-110	4UD-130	4UD-160
Working dimensions (LxWxH) mm	2300× 1100× 1150	2300× 1200× 1150	2300× 1300× 1150	2300× 1400× 1150	2300× 1600× 1150	2300× 1900× 1150
Transport dimensions (LxWxH) mm	2000× 1100× 1150	2000× 1200× 1150	2000× 1300× 1150	2000× 1400× 1150	2000× 1600× 1150	2000× 1900× 1150
Auxiliary power(4WD)	≥40HP	≥40HP	≥50HP	≥50HP	≥70HP	≥70HP
Structural Style	Three point suspension	Three point suspension	Three point suspension	Three point suspension	Three point suspension	Three point suspension
Structural Quality	415kg	450kg	475kg	550kg	610kg	660kg
Working width	83cm	90cm	100cm	110cm	130cm	160cm
Work efficiency	≥1500m2	≥1700m2	≥1900m2	≥2100m2	≥1500m2	≥1520m2
Excavation shovel type	Moving shovel	Moving shovel	Moving shovel	Moving shovel	Moving shovel	Moving shovel
Furrower	Optional	Optional	Optional	Optional	Optional	Optional
Ground rolling
Excavation depth	0~250mm	0~250mm	0~250mm	0~250mm	0~250mm	0~250mm
Chain rod gap	38.5mm	38.5mm	38.5mm	38.5mm	38.5mm	38.5mm
Chain rod material	55CrSi	55CrSi	55CrSi	55CrSi	55CrSi	55CrSi
4UC Potato Harvester is a potato harvester driven by a walking tractor
Model	4UC-50	4UC-60	4UC-70	4UC-82	4UC-90	4UC-100
Structural Style	Traction type
Number of tires/tracks	2 PCS
Tire/track spacing (center)	500mm	600mm	700mm	820mm	900mm	1000mm
Working dimensions (LxWxH) mm	1060×670×590	1060×770×590	1060×870×590	1060×990×590	1060× 1070×590	1060× 1170×590
Overall weight	95kg	95kg	95kg	100kg	100kg	100kg
Working width	500mm	600mm	700mm	820mm	900mm	1000mm
Work efficiency	1300-2600m2/h
Supporting power	≥20HP
Supporting power output shaft speed	540r/min
Excavation device type	MOVABLE BLADE
Blade material	65 Mn Steel
Excavation depth adjustment range	0-250mm
Type of depth limiting mechanism	Depth wheel
Discharge Method	Ground picking

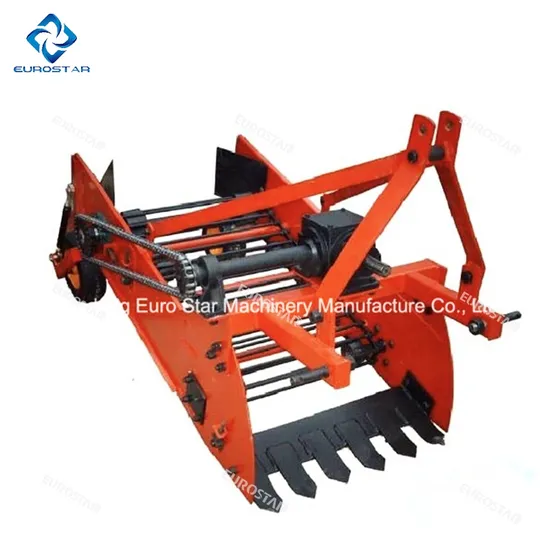

Potato harvester picture
Full range of tractor products display
Container Display
Other farm implements display
Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Workshop display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
