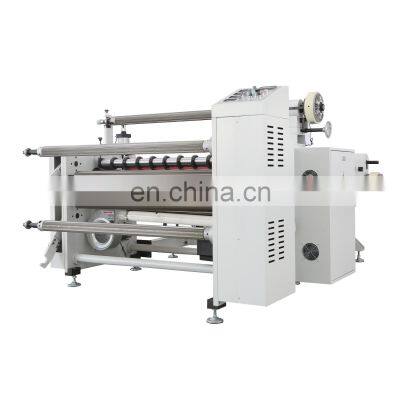

cellophane tape laminating slitting machine

Product Description

Product Description
1300/1600 cellophane tape copper foil laminating and slitting machine Machine Name :DP-1600 Slitting Machine(Two Motor)1. Technique Data Machine Speed : 110m/minMax material diameter : 1600mmFeeding Diameter : 800 mmRewinding diameter : 450mmSlitting accuracy :±0.1mmVoltage:380V 50HZMain Motor Power :5.5kw (2 motor power) Total Power: 8kw Raw material Max hole diameter: 3”compress air source:(0.4-0.6)Mpa(customer-owned)Finished products Min. Width by standard slitting :25MMMain Machine size :2400*2300*1300mmFeeding Machine size : 1950*880*780mmWeight : 2.2T2, Feeding DeviceFeeding Air Expansion Shaft (3”Pad Shaft) 2 Setsmagnetic powder brake 100N 1 Set Film release Magnetic Powder Brake 50N 1 SetFeeding Tension Control System 2 SetsCorrection System(Taiwan Gas and Liquid correction) 1 set 3, Renewal Material Laminating Part :Upper Laminating COTS Dia.135(PU) 1 SetUnder Laminating COTS Dia.135(PU) 1 SetAluminum guide roller(hard Oxygen surface treatment) 1 SetPressure roller pneumatic type top and bottom system adjustable : 1 Setelectronic counter 1 SetFilm Release tensioning adjustable system 4. Reeling endReceiving Flatulence axis(3″Pad shaft) 2 Setsmagnetic powder clutch 50N 2 Setshe receiving tension control system 2 SetsMain electrical machine (double motor) 1 SetMain Power inverter 1 SetWinding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set5. Operator control box 1 Set6.Electric control panel 1 Set7. Function Profilefrequency control of motor speed, operation more easy. Control more accurate. Double receiving roller center take up , rewindingDouble receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual useElectronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15MIndependent fan waste discharge. Double motor configuration,The scroll of rewinding can be positive and negative transfer . 8. Slitting partSlitting up and down cutter 10 sets Circle tool apron 10 setsSlitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs
