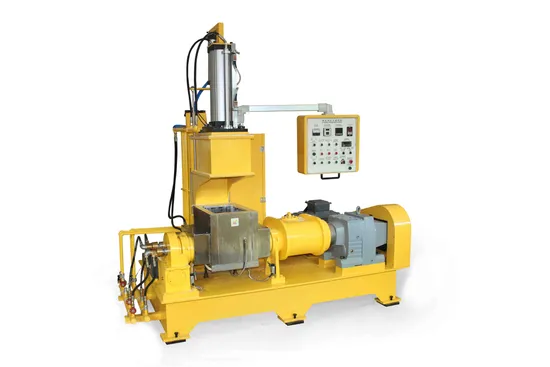

1/3/5/10L Rubber Plastic Banbury Mixer Kneader

Product Description

Product Description:
This machine is suitable for stiring, kneading and dispersion of all kinds of chemical raw materials, such as plastic, rubber, synthetic rubber hot melt adhesive, etc. And then put the formula into the production line. This machine is equipped with PLC man-machine interface, temperature control module, and heat condition oil heating cooling system. Make it easy to operate, fast heating and cooling. With this machine, you can do many different experiments of all kinds of material in a short time.

XH-420-1L Technical parameter
Mixing Volume	1L, 3L, 5L, 10L,25L
Control Mode	Key control/PLC control (optional)
Flip Motor	0.75kw
Rotor speed (front and rear)	40r/30 min (speed adjustable)
Filp Angle	110ºC
Air pressure	0.3-0.5Mpa
Volume(H*W*D)	1900*1300*1500mm
Weight	1300kgs
Power supply	3∮, AC380V (or customized)

Details Images
Internal Mixer Features
1) The local device automatic temperature and time control system, precise operation, simple and easy, mixing up and take the best uniform dispersion effect
2) The mixing tank to be dumped style, mixing shaft mechanical seal leak dry cleaning so easy to change colors easily
3) Pressurized sealed mixing chamber to ensure the quality of the mixture outside and prevent environmental pollution
4) Mixing tank using advanced alloy steel, wear-resistant steel surfaces are treated by surface abrasion particularly good, hard chrome plating
5) Electronic control requires adjustments according to customer requirements
Other size of Lab kneader. Such as 1L,3L,5L,10L,25L
