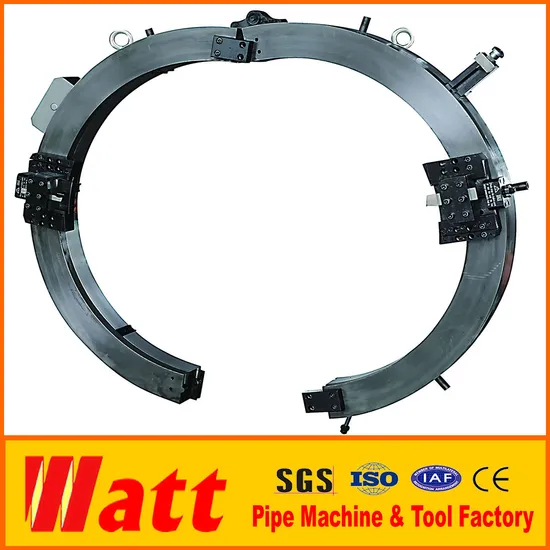

Od Mounted Pipe Cutting and Beveling Machine on Site Pipeline

Product Description

Pipe & Flange Cutting Beveling Facing Drilling Boring
Product Description
L8 Split Frame Pipe Cutting and Beveling Machine
Working range: Pipe OD 2"-8"
Max. Pipe wall thickness: 50mm
Product Show

Production Description
The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe.
Features: Cold Cutting and Beveling improves safety Cutting and Beveling simultaneous Split Frame: Easy mounted on pipeline Tools feed automatically Fast, Precision, On-site Beveling Minimal Axial and Radial clearance Light weight and compact design Easy set-up & Operation Electric or Pneumatic or Hydraulic driven Machining heavy-wall pipe from 3/8" up to 96" Driven motor and model: Hydraulic/ Numerical control/ Electric/ Pneumatic; Equipment selection:
Standard Portable split frame pipe cutting and beveling machine

Model	Working range		Wall thickness(mm)		Rotating speed (rpm)
	OD(mm)	OD (inch)	Single operation	Multi operation
L3	Ф10~90	3/8"~3"	≤25	/	34
L6	Ф25~168	1"~6"	≤25	≤50	24
L8	Ф50~219	2"~8"	≤25	≤50	23
L10	Ф114~273	4"~10"	≤25	≤75	23
L12	Ф168~323	6"~12"	≤25	≤75	23
L14	Ф219~355	8"~14"	≤25	≤110	23
L16	Ф254~406	10"~16"	≤25	≤110	22
L18	Ф323~457	12"~18"	≤25	≤110	20
L20	Ф355~508	14"~20"	≤25	≤110	20
L22	Ф406~559	16"~22"	≤25	≤110	14
L24	Ф457~610	18"~24"	≤25	≤110	14
L30	Ф610~762	24"~30"	≤25	≤110	13
L36	Ф762~914	30"~36"	≤25	≤110	11
L42	Ф914~1066	36"~42"	≤25	≤110	10
L44	Ф980~1160	38"~44"	≤25	≤110	9
L48	Ф1040~1240	40"~48"	≤25	≤110	9
L51	Ф1150~1300	45"~51"	≤25	≤110	8
L60	Ф1320~1540	52"~60"	≤25	≤110	5

We can design and manufacture according to customer's requirement
Machine body structure and material:
1. Standard Model: Alloy steel with ionic nitriding treatment, the weight is a bit heavy but solid and durable;
2. Light Model: Aerospace grade aluminum alloy. Light weight and suitable for high-altitude operation.
Order Guide
Before you place order to us, please let us know the following information: Choose the right Model Confirm your electric power supply ( Voltage, frequency and phase) Confirm the beveling angel required Confirm the welding joint required (U, V, Double V or Compound preparation) Advise your pipe material ( Carbon steel, stainless steel or others) Other special demands about machine The spare parts needed Advise pipe wall thickness (Important)
