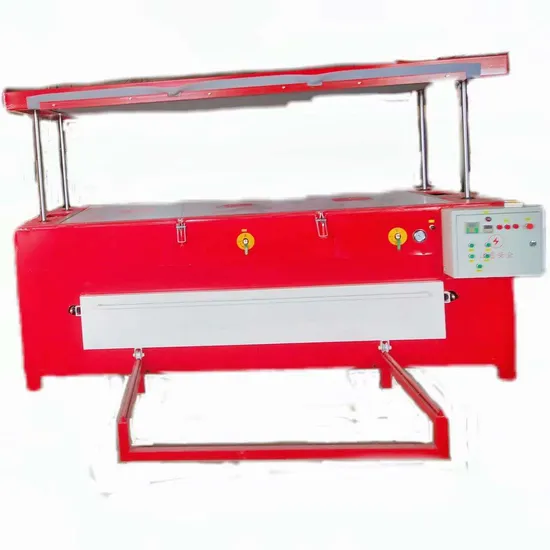

Acrylic Solid Surface Vacuum Press Thermoforming Machine with Heat Oven Corian Vacuum Membrane Press for 3D Forming

Product Description

PLS-A Series vacuum membrane press is designed for pre-heating and thermoform solid surface materials (CORIAN, HI- MACS, STARON, Hanex, Avonite, Krion, etc ) and other thermoplastic such as acrylic, PVC. It can form flat sheet into different kind of 2D and 3D shape, in order to achieve many fantastic design

The PLS-A vacuum membrane press combines two independent part: a pre-heating oven and a membrane press. So it could achieve all of heating, forming and sublimation demand function for solid surface materials
Application materials
Application materials
1. Acrylic solid surface ( Corian, Hi- Macs, Staron, Hanex, Avonite, Krion, etc )
2. Thermoplastic ( Acrylic, ABS, PVC, PET-G, etc )
3. Resysta material, Polyster felt, etc
Key attributes Other attributes Condition
New
Plastic Type
Corian, Acrylic, ABS, PP, etc
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
Pump
Place of Origin
China
Weight (T)
1 T
Warranty
1 Year
Key Selling Points
Long Service Life
Applicable Industries
Hotels, Advertising Company, Interior decoration
Showroom Location
Egypt, Canada, Turkey
Max.Forming Height(mm)
500 mm
Forming Width (mm)
1300 mm
Forming Length (mm)
2500 mm
Heating Power (kW)
18 kW
Production Speed(times/h)
10
Power Supply
ac
Type
Thermoforming Machine
Product Type
Plastic Sheet
Automatic
Yes
Brand Name
BaoYuanTong
Voltage
380V,50/60Hz,3phase
Dimension(L*W*H)
2550*1670*1150mm
For materials
Corian, Staron,ABS, PVC, PMMA (Plexiglas, Acryl), PET, PS,
Application
Preheating/ Forming/ Laminating/ veneering
forming area
2240*1020
per-heating table
2000x1000mm
working power
20KW
Vacuum pump output
60m3/h
Material thickness
0-20mm
Weight
750kg
Power
20kw
After-sales Service Provided
Video technical support
